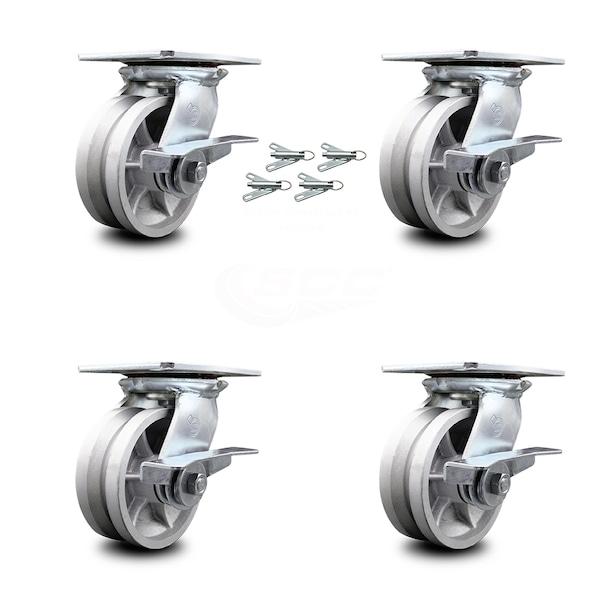

5 Inch V Groove Semi Steel Caster Set with Roller Bearings and Brake/Swivel Lock
Mfr # SCC-35S520-VGR-SLB-BSL-4
Zoro # G805437886
product price: $330.99
/ea
Free Shipping & Returns
Key Features
Plate Size
4-1/2" x 6-1/4"
Type
(4) Swivel caster w/side lock brake & bolt on swivel lock
Mounting Height
6-1/2"
Wheel Width
2
Caster Temp. Range
-45 degrees F to 180 degrees F
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowUnlock tax-exempt savings
Add Tax ExemptionSpecifications
Product Information
MFR #
SCC-35S520-VGR-SLB-BSL-4
Zoro #
G805437886
UPC #
11586590113
Country of Origin
United States
Dimensions
Plate Size
4-1/2" x 6-1/4"
Mounting Height
6-1/2"
Wheel Width
2
Wheel Dia.
5
Size
5" x 2"
Bolt Size
1/2" (hardware not included)
Details
Type
(4) Swivel caster w/side lock brake & bolt on swivel lock
Caster Temp. Range
-45 degrees F to 180 degrees F
Capacity (Lb.)
4400
Caster Mounting Type
Top Plate
Finish
Bright Zinc Plated Finish
Caster Swivel Lock Type
4 Top Lock Brakes & Bolt on Swivel Locks
Series
Series#35
Material
Cast Iron V-Groove
Plate Caster Bolt Hole Pattern
2-7/16" x 4-15/16" to 3-3/8" x 5-1/4"
Bearing Type
Roller Bearing
Description
Listing is for a set of four (4) Service Caster Series #35 swivel casters with 5" diameter by 2" wide v-groove cast iron wheels with side lock brakes and bolt on swivel locks capable of supporting a total weight of 4,400 lbs. (1,100 lbs. per caster). When searching for a reliable and durable solution for heavy duty projects, consider Service Caster’s Series 35 semi steel cast iron v-groove wheel casters. The Service Caster Series #35 v-groove wheel is designed to roll on 45 degree angled track, and also has a flat face suitable for non-tracked use. The semi-steel cast iron wheel is built to withstand high capacity, heavy loads up to 1250lbs and in temperatures up to 600°F. An economic choice over steel, semi-steel wheels are abrasion resistant and rugged. Finely crafted with double ball bearing heat treated raceways, these versatile casters are ideal for a wide range of applications specific to high capacity tracked workflows, but also for dollies, platform trucks, warehouse carts and freight terminals. Or ensure a smooth and secure ride for industrial and commercial equipment. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series 35, keeping you moving forward.
