6 Inch Kingpinless Rubber on Steel Wheel Swivel Caster Set with Brakes SCC
Mfr # SCC-KP30S620-RSR-SLB-4
Zoro # G405438290
product price: $495.99
/ea
Free Shipping & Returns
Key Features
Plate Size
4" x 4-1/2"
Caster Mounting Type
Top Plate
Durometer
80A
Mounting Height
7-1/2"
Wheel Width
2
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
SCC-KP30S620-RSR-SLB-4
Zoro #
G405438290
UPC #
11586556201
Country of Origin
United States
Dimensions
Plate Size
4" x 4-1/2"
Mounting Height
7-1/2"
Wheel Width
2
Wheel Dia.
6
Size
6" x 2"
Bolt Size
3/8" (hardware not included)
Details
Caster Mounting Type
Top Plate
Durometer
80A
Capacity (Lb.)
1800
Plate Caster Bolt Hole Pattern
2-5/8" x 3-5/8" to 3" x 3"
Material
Rubber on Cast Iron
Caster Temp. Range
-40 degrees F to 180 degrees F
Series
Series#KP30
Type
(4) Swivel caster w/side lock brake
Finish
Bright Zinc Plated Finish
Caster Swivel Lock Type
4 Top Lock Brakes
Bearing Type
Roller Bearing
Description

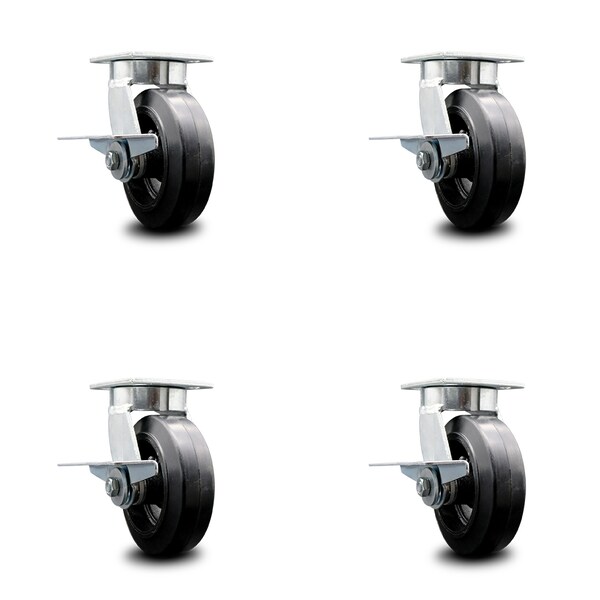

Listing is for a set of four (4) Service Caster Series #KP30 swivel casters with 6" diameter by 2" wide rubber on cast iron wheels with side lock brakes capable of supporting a total weight of 1,800 lbs. (450 lbs. per caster). When searching for a reliable and durable solution to your caster needs, consider Service Caster Series KP30 moldon rubber on cast iron wheel casters. The Service Caster Series KP30 is ideal for material handling, carts, equipment, and shop projects. The moldon rubber tread performs especially well on hard surfaces such as concrete, tile, and wood, while the cast iron core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 casters are finely crafted with grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
