8'' Heavy Duty High Temp Phenolic Swivel Caster with Brake and Swivel Lock

  • Mfr # CRAN-SCC-KP92S830-PHRHT-SLB-BSL

  • Zoro # G211353343


product price:  $519.99
/ea
Free Shipping & Returns

Key Features

Features
Side lock brake & Bolt on swivel lock
Mounting Height
10-1/2 in
Caster Mounting Type
Top Plate
Caster Brake Type
Side lock brake & Bolt on swivel lock
Frame Finish
Bright Zinc Plated Finish
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
CRAN-SCC-KP92S830-PHRHT-SLB-BSL
Zoro #
G211353343
UPC #
734005228298
Country of Origin
United States

Dimensions

Mounting Height
10-1/2 in

Details

Features
Side lock brake & Bolt on swivel lock
Caster Mounting Type
Top Plate
Caster Brake Type
Side lock brake & Bolt on swivel lock
Frame Finish
Bright Zinc Plated Finish
Load Capacity
2500 lbs.
Wheel/Tread Material
High Temperature Phenolic
Wheel Bearing Type
Roller Bearing
Wheel Hardness Rating
90D
Operating Temperature Range
475 degrees F to 525 degrees F

Description

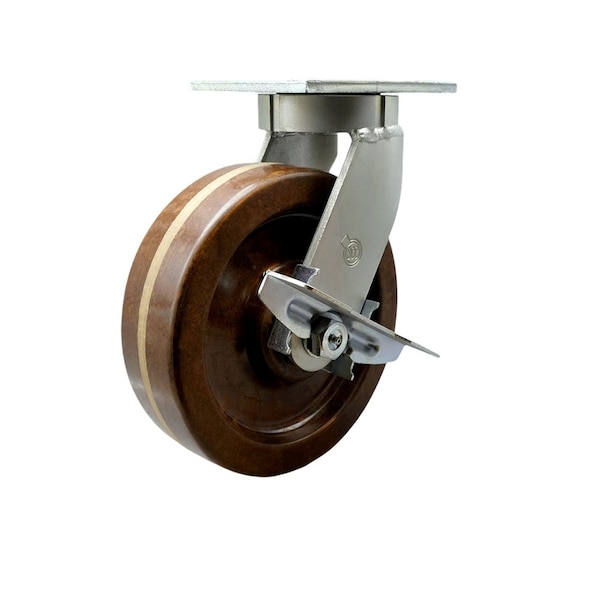

Listing is for one 1 Service Caster Series #92 swivel caster with a side lock brake, a bolt on swivel lock, and a 8'' diameter, 3'' wide brown high temperature phenolic wheel. Supports 2500 pounds lbs per caster. When searching for a reliable and durable solution for extra heavy duty projects, consider Service Casters Series 92 top plate phenolic casters. The Service Caster Series #92 is ideal for cranes, gantry, hoists, winches, autoclaves, bakery ovens and powder coating facilities. The high temp phenolic wheels- quieter than comparable steel wheels- have a high resistance to impact damage, providing protection for floors in commercial and industrial settings. This caster is ideal for use in high temperatures associated with baking, performing consistently in temperature ratings of 475°F continuous usage to 525°F intermittent usage. Not only are they resistant to water, oil, and grease, but because they are non-metallic, these wheels are spark proof, keeping you safely moving forward. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series 92 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 1/2'' diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Casters Series #92 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. Service Caster is unsurpassed in quality, reliability, and excellent customer service. Count on us to move you forward.
