Service Caster

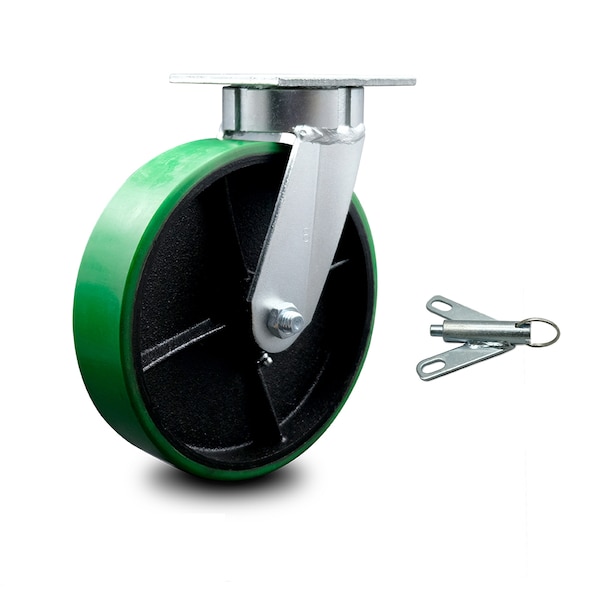

8 Inch Kingpinless Green Poly on Steel Wheel Swivel Caster with Swivel Lock SCC


product price: $139.99
/ea
Free Shipping & Returns

Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Wheel Dia. 8
  • Wheel Width 2
  • Plate Size 4" x 4-1/2"
  • Mounting Height 9-1/2"
  • Type Swivel caster w/bolt on swivel lock
See all product information

Product Information

Dimensions

Wheel Dia. 8
Wheel Width 2
Plate Size 4" x 4-1/2"
Mounting Height 9-1/2"
Bolt Size 3/8" (hardware not included)
Size 8" x 2"

Details

Type Swivel caster w/bolt on swivel lock
Caster Swivel Lock Type Bolt On Swivel Lock
Durometer 95A
Series Series#KP30
Material Polyurethane on Cast Iron
Finish Bright Zinc Plated Finish
Capacity (Lb.) 1250
Caster Mounting Type Top Plate
Plate Caster Bolt Hole Pattern 2-5/8" x 3-5/8" to 3" x 3"
Caster Temp. Range -40 degrees F to 180 degrees F
Bearing Type Roller Bearing

Description

Listing is for one (1) Service Caster Series #KP30 swivel caster with a 8" diameter by 2" wide polyurethane on cast iron wheel and a bolt on swivel lock capable of supporting 1,250 lbs./caster. When searching for a reliable and durable solution to your caster needs, consider Service Caster’s Series KP30 polyurethane on metal wheel casters. The Service Caster Series KP30 is ideal for material handling, carts and industrial equipment. The non marking, non-marring polyurethane tread performs especially well on hard surfaces such as concrete, tile, and wood, while the metal core wheel stands up to heavier loads with a stable and secure roll. Featuring a Kingpinless hot forged ASTM1045 steel design that increases caster durability and integrity, the series KP30 eliminates problems associated with kingpin failure due to severe shock loading. In addition, the Kingpinless design features 3/8” diameter HRC45 steel ball bearings which absorb thrust and load in severe environments. Lastly, Service Caster’s Series KP30 top plate casters are finely crafted with zinc plating, grease fittings, and 4 position notches to accept 4-position locks. These highly versatile casters are ideal for a wide range of applications, such as dollies, platform trucks, warehouse carts and freight terminals. Even drywall carts, welding carts, and wall panel carts will be ready to roll on the Series KP30, keeping you moving forward.
