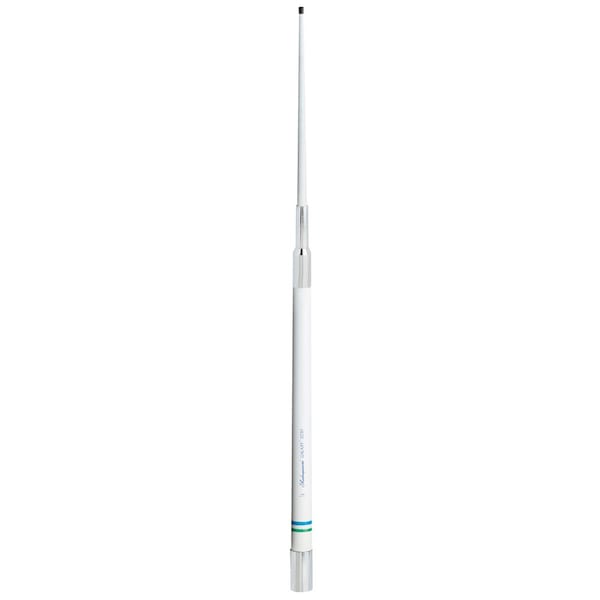

Shakespeare 5230 14' VHF Antenna

Shakespeare Galaxy 5230

14' VHF 8dB Gain

5/8 wave over 1/2 wave dipole

The ultra-performer, Shakespeares Style 5230 is the most effective 8dB antenna system available anywhere, thanks to its increased signal capture area.

• Brass and copper elements for maximum range and efficiency
• Stainless steel ferrule with standard 1"-14 thread
• Includes 20 feet of RG-8/X cable and a PL-259 connector
• Suggested mount: Shakespeare Style 409-R or 410-R Mounting Kit
• Two sections: Base 94", Tip 74" -
• Shakespeare Limited Warranty: 5 years

Technical Specifications:

Frequency:VHF Marine BandBandwidth:3 MHz within 2.0:1 VSWRSWR:nominally 1.5:1 at 156.8 MHzImpedance:50 ohmsGain:8 dBMax Input (Watts):200 wattsDC Ground:YESHeight (feet):14Polarization:Vertical
