This item is Discontinued.

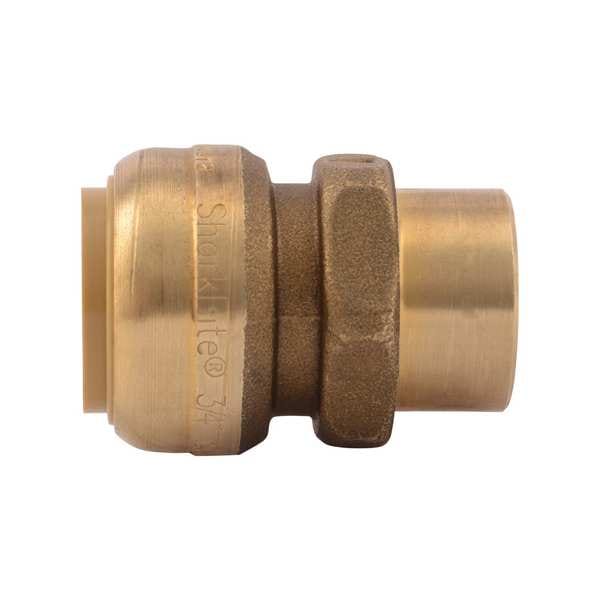

Sharkbite Female Reducing Adapter, 3/4 in Tube Size, Brass, Brass U092LF

This item is Discontinued.

Sharkbite

Female Reducing Adapter, 3/4 in Tube Size, Brass, Brass (Discontinued)

Mfr # U092LF
Zoro # G4596505
UPC # 697285465121
Country of Origin Australia
Category Push-to-Connect Tube Fittings
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
U092LF
Zoro #
G4596505
UPC #
697285465121
Country of Origin
Australia
Item
Female Reducing Adapter
Tube Fitting Material
DZR Brass
Specific Fitting Shape
Straight Adapter
Fitting Connection Type
Push-Fit x FNPT
Max. Pressure
200 psi
Basic Pipe Fitting Material
Metal
Specific Pipe Fitting Shape
Reducing Adapter
Pipe Fitting Connection Type
Push-To-Connect
Basic Pipe Fitting Shape
Adapter
Temp. Range
0 Degrees to 200 Degrees F
Special Features
Connects Copper, Pex and CPVC in any Combination without the Use of Soldering, Unions or Glue
Gasket Material
EPDM
Standards
ASSE 1061/NSF 108, CPUC Listed, IAPMO, IGC 188, IPC, NSF/ANSI 61, UPC
System of Measurement
Imperial
Application
Potable Water
Color
Brass
Maximum Operating Pressure
200 psi
Resistance Properties
Corrosion-Resistant
Minimum Operating Temperature
0 Degrees F
Fitting Material
Brass
Release Ring Material
EPDM
Maximum Operating Temperature
200 Degrees F
Compatible Tube Material
Copper, CPVC, HDPE, PEX, Polyethylene
Fitting Side B Connection Type
FNPT
Fitting Side A Connection Type
Push-to-Connect
Includes Pre-Applied Thread Sealant
Pre-Applied Thread Sealant Not Included
Fitting Shape
Straight
Operating Temperature - Maximum
200 Degrees F
Fitting Side 1 Connection Type
Push-to-Connect
For Media Type
Potable Water
Connector Type
Adapter, Reducer
Operating Temperature - Minimum
0 Degrees F
Operating Pressure - Maximum
200 psi
Fitting Side 2 Connection Type
FNPT

Description

Female Reducing Adapter, Application Potable Water, Fitting Side A Connection Type Push-to-Connect, Fitting Side B Connection Type FNPT, Fitting Side B Pipe Size 1/2 in, Fitting Side A Tube Outer Diameter 3/4 in, Fitting Material Brass, Fitting Thread Size 1/2 In., Color Brass, Includes Pre-Applied Thread Sealant Pre-Applied Thread Sealant Not Included, Maximum Operating Pressure 200 psi, Maximum Operating Temperature 200 Degrees F, Overall Length 1 11/32 in
