  11. Lathe, 230/460V Volts, 7 1/2 hp HP, 60 Hz, Single/Three Phase 60 in Distance Between Centers

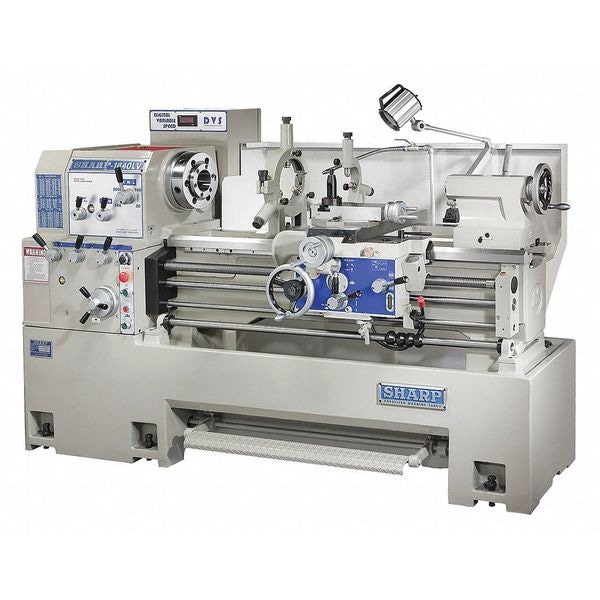

Sharp Lathe, 230/460V Volts, 7 1/2 hp HP, 60 Hz, Single/Three Phase 60 in Distance Between Centers 1860LV - main

Lathe, 230/460V Volts, 7 1/2 hp HP, 60 Hz, Single/Three Phase 60 in Distance Between Centers

  • Mfr # 1860LV

  • Zoro # G5061791

product price: $40,028.99
/ea
Item requires special delivery charges. A $600.00 per item surcharge will be applied.

Key Features

Primary Application
Metal Turning
Motor HP
7-1/2
Phase
Single/Three
Voltage
230/460V
Frequency
60 Hz
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
1860LV
Zoro #
G5061791
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Overall Width
8 69/100 ft
Overall Height
4 ft
Overall Length
105 in
Gap Length (In.)
9-3/4
Bed Width (In.)
11-3/4
Gap Length
9 3/8 in
Bed Width
11 3/4 in
Tailstock Diameter
2 17/25 in
Overall Depth
2 13/20 ft
Leadscrew Size
1.37 in x 4 TPI
Bed Length
79 in

Details

Item
Lathe
Primary Application
Metal Turning
Motor HP
7-1/2
Phase
Single/Three
Voltage
230/460V
Frequency
60 Hz
Swing Over Bed (In.)
18-1/2
Distance Between Centers
60 in
Horsepower
7 1/2 hp
Tailstock Taper
MT4
Spindle Taper
MT-4
Hz
60
Carriage Travel (In.)
80
Number of Threads (mm)
34
Swing Over Cross Slide (In.)
11-3/4
Swing In Gap (In.)
27-1/4
Distance Between Centers (In.)
60
Longitudinal Feed Rates
0.002 to 0.032
Compound Travel (In.)
5-1/4
Cross Travel (In.)
9-7/8
Tailstock Travel (In.)
5
Cross Feed Rates
0.001 to 0.094
Includes
(2) Axis Digital Readout System, Chuck Guard with Limit Switch
Spindle Speed (RPM)
20 to 2000
Number of Spindle Speeds
12
Thread Range (In.)
4 to 56
Coolant Tank Capacity
5 gal.
Features
12 Speed Geared Head, Camlock Spindle, Digital Variable Speed-DVS, Direct Selection for Inch/Metric Threads, One Piece Cast Meehanite Bed
Number of Threads (In.)
36
Spindle Bore (In.)
3-9/64
Thread Range (mm)
4 to 56
Swing Over Cross Slide
10 1/5 in
Max. Spindle Speed
2,000 RPM
Spindle Bore
3 in
Spindle Nose Type
D1-8 Camlock
Swing Over Bed
18 in
Min. Spindle Speed
20 RPM
Number of Metric Threads
17
Swing In Gap
27 1/4 in
Min. Metric Thread
0.5 mm (Module), 4 mm (D.P)
Max. Threads per Inch
56
Max. Metric Thread
56 mm (D.P), 7 mm (Module)
Number of Inch Threads
36
Max. Cross Feed
0.0094 in
Min. Cross Feed
0.0010 in
Min. Threads per Inch
4
Application
Metal Turning
Maximum Compound Slide Travel
4 9/10 in
Longitudinal Feed - Maximum
0.032 in/rev
Lathe Head Drive
Gear Drive
Maximum Cross Slide Travel
10 4/5 in
Swing Over Gap
27 3/25 in
Spindle Speed - Minimum
20 RPM
Includes Collet Closer
No Collet Closer
Spindle Speed - Maximum
2,000 RPM
Tailstock Spindle Travel
5 1/2 in
Standards
CSA, UL
Includes Digital Readout
No Digital Readout
Threads per Inch - Maximum
56
Cross Feed - Minimum
0.0001 in/rev
Threads per Inch - Minimum
4
Includes Taper Attachment
No Taper Attachment
Series
1860LV
Metric Thread - Maximum
7 mm
Longitudinal Feed - Minimum
0.002 in/rev
Current
12.5 A, 25 A
Cross Feed - Maximum
0.0094 in/rev
Spindle Nose Taper
D1-8 Camlock
Metric Thread - Minimum
0.5 mm

Description

Lathe, Distance Between Centers 60 in, Voltage 230/460V, Horsepower 7 1/2 hp, Min. Spindle Speed 20 RPM, Application Metal Turning, Overall Height 4 ft, Overall Length 105 in, Overall Width 8 69/100 ft, Max. Spindle Speed 2,000 RPM, Tailstock Taper MT4, Spindle Nose Type D1-8 Camlock
