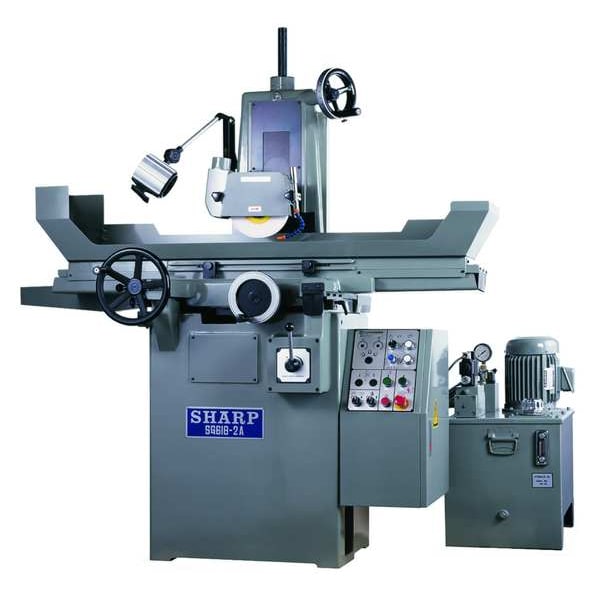

Surface Grinder, Automatic, 220V

  • Mfr # SG-618-2A
  • Zoro # G5061992
product price:
$
30,781.99
/ea
Additional $240.00 delivery surcharge applies per item.
See details

Key Features

Phase
Three
Voltage
220 V
HP
1-1/2
Max. Grinding Width
6 3/4 in
Magnetic Chuck Size
6 in x 12 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SG-618-2A
Zoro #
G5061992
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Max. Grinding Width
6 3/4 in
Magnetic Chuck Size
6 in x 12 in
Max. Grinding Length
12 5/8 in
Wheel Width
(1) 3-1/2", (2) 4"
Grinding Wheel Dia.
8 in
Overall Length
5 7/8 ft
Overall Width
6 7/8 ft
Overall Height
4 1/4 ft
Grinding Wheel Width
3/4 in
Table Dimensions
6 in x 18.3 in
Table Width
6 in
Magnetic Chuck Length
12 in
Magnetic Chuck Width
6 in
Grinding Width - Maximum
6 1/4 in
Grinding Wheel Diameter
8 in
Grinding Length - Maximum
18 1/2 in
Table Length
18.3 in
Wire Rope Length
5 7/8 ft
Length
5 7/8 ft
Fits Chest Size
Accurate Slot-Grinding Capability, Advanced Hydraulic System with Independent Oil Tank for Vibration Free Table, Ball Screw on Crossfeed, Double "V" Way Cross Travel, One "V", One Flat Way Longitudinal Travel, Slide Ways are Hand Scraped and Coated with Turcite

Details

Item
Surface Grinder
Phase
Three
Voltage
220 V
HP
1-1/2
Operation Type
Automatic
Coolant Feed
Non-Coolant Fed
Spindle to Table
15-45/64"
Spindle RPM
3600
Hz
60 Hz
Downfeed Handwheel per Revolution
0.030"
Longitudinal Table Speed
196 to 984 in/min
Longitudinal Table Travel
12-5/8"
Wheel Bore
1-1/8"
Downfeed Handwheel per Graduation
0.0002"
Includes
Auto Lube System, Diamond Dresser, Grinding Wheel, Kanetsu Chuck with Coolant System (12 gal) and Splash Guard, Tool Kit, Wheel Adapter/Flange, Wheel Balancing Arbor, Wire, Work Light
Features
Accurate Slot-Grinding Capability, Advanced Hydraulic System with Independent Oil Tank for Vibration Free Table, Ball Screw on Crossfeed, Double "V" Way Cross Travel, One "V", One Flat Way Longitudinal Travel, Slide Ways are Hand Scraped and Coated with Turcite
Crossfeed Handwheel per Revolution
0.100"
Crossfeed Table Travel
6-3/4"
Machine Weight
2,200 lb
Hand Feed
0.2 in/rev
Cross Handwheel Feed per Revolution
0.02 in
Hydraulic Feed
3.3 to 82 fpm
Vertical Handwheel Graduation
0.0001 in
Frequency
60 Hz
Longitudinal Travel
18 1/2 in
Spindle Center to Table Distance
15 3/4 in
Spindle Speed
3,600 RPM
Grinding Wheel Bore
1 1/4 in
Crossfeed Handwheel Graduation
0.001 in
Coolant Fed
Non-Coolant Fed
Horsepower
2 hp
Longitudinal Table Speed - Minimum
196 in/min
Intermittent Feed - Maximum
0.4000 in
Cross Travel - Maximum
7 in
Motor Type
Hydraulic Spindle
Hydraulic Feed - Maximum
83 fpm
Longitudinal Table Speed - Maximum
984 in/min
Intermittent Feed - Minimum
0.0060 in
Hydraulic Feed - Minimum
3.3 fpm

Description

Surface Grinder, Table Dimensions 6 in x 18.3 in, Phase Three, Operation Type Automatic, Grinding Wheel Dia. 8 in, Max. Grinding Width 6 3/4 in, Coolant Fed Non-Coolant Fed, Cross Handwheel Feed per Revolution 0.02 in, Crossfeed Handwheel Graduation 0.001 in
