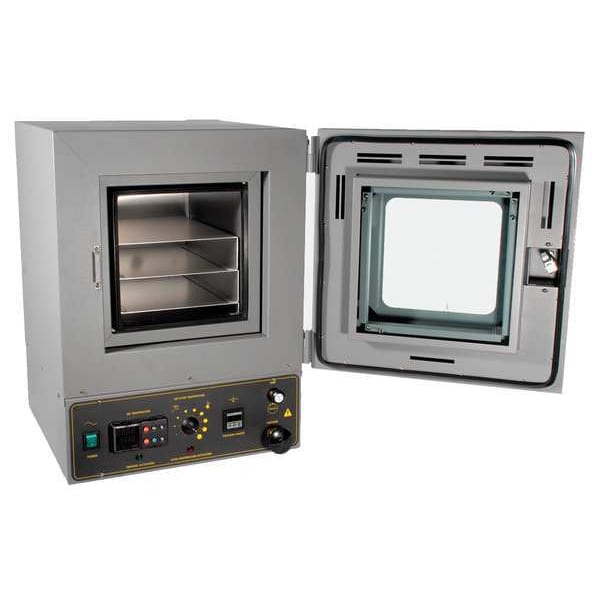

Shel Lab Vacuum Oven, 9inHx9inWx12inD SVAC1 - main

Vacuum Oven, 9inHx9inWx12inD

  • Mfr # SVAC1

  • Zoro # G9832006

product price: $6,109.99
/ea
Additional $115.00 delivery surcharge applies per item.
See details

Key Features

Overall Depth
23 in
Overall Height
23 3/4 in
Overall Width
17 1/2 in
Convection Type
Vacuum
Capacity
0.56 cu ft
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
SVAC1
Zoro #
G9832006
UPC #
810103020382
Country of Origin
United States

Dimensions

Overall Depth
23 in
Overall Height
23 3/4 in
Overall Width
17 1/2 in
Manufacturers Warranty Length
2 yr
Inside Usable Dimensions
9"H x 9"W x 12"D
Overall Dimensions
17"H x 22.3"W x 23.5"D
Chamber Width
9 in
Chamber Height
9 in
Chamber Depth
12 in
Interior Height
9 in
Interior Depth
12 in
Interior Width
9 in

Details

Item
Vacuum Oven
Convection Type
Vacuum
Capacity
0.56 cu ft
Volume
0.56 cu ft
Wattage
1,212 W
Voltage
110 to 120V AC
Features
Built-In Overtemperature Protection, Watlow Controller
Standards
CE, CSA 61010-1, EN 61010-1, UL 61010-1
Special Features
Achieve Impressive Vacuum Levels, Built-In Overtemperature Protection, Cross Ventilation Air Flow Design, Exceeds Ce Safety Requirements, Seated Vacuum Valves
Includes
(2) Tall Shelves, Power Cord, Short Bottom Shelf
Number of Doors
1
Number of Shelves
3
Thermostat
Microprocessor Control
Preheat Time
90 min to 150 Degrees C
Watts
1,212 W
Temp. Range (C)
10 Degrees to 220 Degrees
Temp. Accuracy
+/-3.5% of set point
Capacity (Cu.-Ft.)
0.6
Temp. Range
Amb. +10 Degrees to 220 Degrees C
Power Requirement
120v 60 hz
Housing Material
Steel
Housing Finish
Painted
Temperature Accuracy Tolerance
+/-3.5%
Interior Material
Stainless Steel
Display Type
Digital
Number of Shelves Included
3
Shelving Material
Aluminum
Temperature Setting - Maximum
220 Degrees C
Temperature Setting - Minimum
10 Degrees C
Minimum Back Clearance
12 in
Product Type
Vacuum Oven
Minimum Side Clearance
2 in
Frequency
50/60 Hz

Description

Vacuum Oven, Convection Type Vacuum, Temp. Range (C) 10 Degrees to 220 Degrees , Overall Height 23 3/4 in, Overall Width 17 1/2 in, Overall Depth 23 in, Temp. Accuracy +/-3.5 Percent of set point, Chamber Height 9 in, Chamber Width 9 in, Chamber Depth 12 in, Voltage 110 to 120V AC, Watts 1,212 W, Capacity (Cu.-Ft.) 0.6, Preheat Time 90 min to 150 Degrees C, Housing Material Steel, Number of Doors 1, Number of Shelves 3
