  6. 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, No Brake, Loads Up To 225 lb

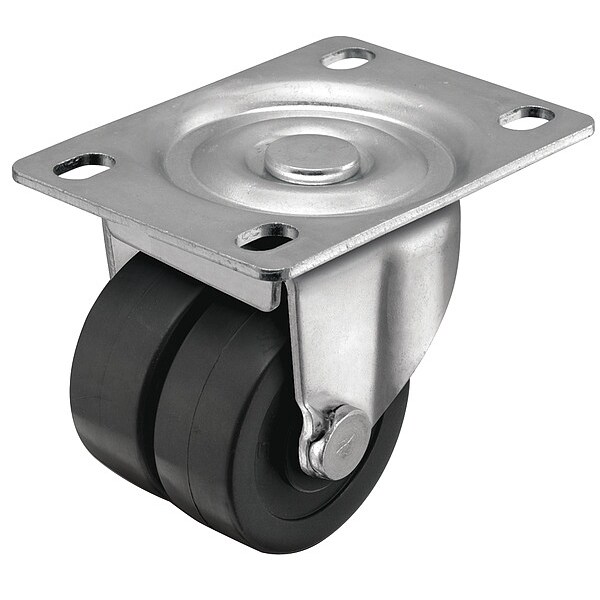

Shepherd Hardware 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, No Brake, Loads Up To 225 lb C0020120ZN-POS01(KK) - main

2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, No Brake, Loads Up To 225 lb

  • Mfr # C0020120ZN-POS01(KK)

  • Zoro # G7812369

product price:  $12.49
/ea

Key Features

Wheel Core Type
Solid
Swivel Radius
2 in
Wheel/Tread Color
Black
Tread Shape
Standard
Swivel Raceway Type
Double Ball
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
C0020120ZN-POS01(KK)
Zoro #
G7812369
UPC #
-
Country of Origin
United States

Dimensions

Swivel Radius
2 in
Overall Wheel Width
1 3/4 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Bolt Dia.
5/16 in
Mounting Height
2-13/16 in
Wheel Dia.
2 in
Mounting Plate Length
3 3/4 in
For Axle Dia.
1/4 in
Mounting Plate Thickness
5/32 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.75 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in
Mounting Plate Width
2 5/8 in

Details

Item
Swivel Caster
Wheel Core Type
Solid
Wheel/Tread Color
Black
Tread Shape
Standard
Swivel Raceway Type
Double Ball
Caster Frame Material
Steel
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
System of Measurement
Inch
Frame Color
Silver
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Wheel Bearing Type
Plain
Swivel Lock Type
No Lock Included
Standards
RoHS Compliant
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
ESD Conductive
No
Wheel Core Material
Polyolefin
Number of Mounting Holes
4
Features
Industry Leading Selection and Overall Value, Sleek, Low Profile Design, Up To 300 lb Capacity per Caster, Dual Ball Bearing Raceways for Smooth and Dependable Swivel
Load Rating Range
0 to 299 lb
Caster Stem Type
Top Plate
Caster Mounting Type
Plate
Frame Finish
Zinc Plated
Caster Sub-Type
Swivel
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Caster Plate Hole Pattern
C
Number of Wheels
2
Series
00 Series
Core Color
Black
Caster Brake Type
No Brake
Operating Temperature Range
-20 to 180 Degrees F
Load Rating
225 lb
Wheel/Tread Material
Polyolefin
Non-Marking
Yes
NSF Listed
No
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Hardness Rating
70 Shore D
Load Capacity - Maximum
225 lb
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Low Profile

Description

Swivel, Plate Caster, Load Rating 225 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
