  6. 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb

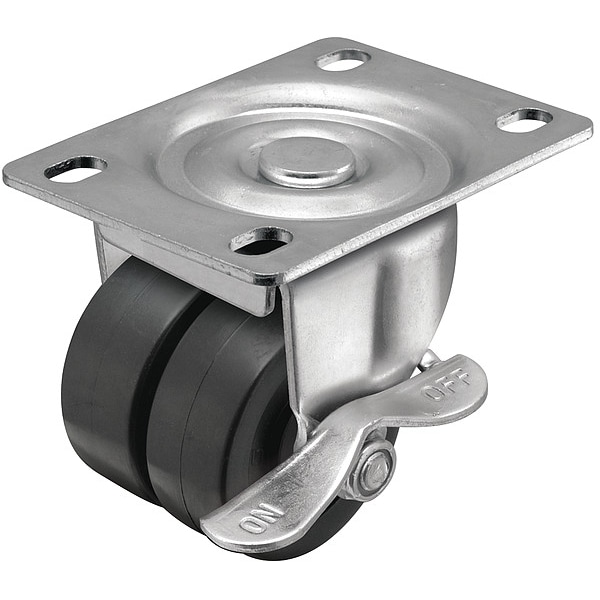

Shepherd Hardware 2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb C0020120ZN-POS01(KK)B - main
Shop SHEPHERD HARDWARE

2" X 13/16" Non-Marking Polyolefin Dual Swivel Caster, Side Brake, Loads Up To 225 lb

  • Mfr # C0020120ZN-POS01(KK)B

  • Zoro # G7812134

product price:  $12.45
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
2 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
C0020120ZN-POS01(KK)B
Zoro #
G7812134
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
2 in
Mounting Height
2-13/16 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
5/16 in
Swivel Radius
2 15/16 in
Overall Wheel Width
1 3/4 in
Mounting Plate Width
2 5/8 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.75 in
For Axle Dia.
1/4 in
Mounting Plate Length
3 3/4 in
Outside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
225 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Standards
RoHS Compliant
ESD Conductive
No
Caster Stem Type
Top Plate
Load Rating Range
0 to 299 lb
Application
Electronic Equipment, Business Machines, Store Fixtures, Laboratory Equipment, Vending Machines, Dolly Solutions, Refrigeration Units
Wheel Core Type
Solid
Frame Color
Silver
Swivel Raceway Type
Double Ball
Features
Industry Leading Selection and Overall Value, Sleek, Low Profile Design, Up To 300 lb Capacity per Caster, Dual Ball Bearing Raceways for Smooth and Dependable Swivel
Wheel Core Material
Polyolefin
Operating Temperature Range
-20 to 180 Degrees F
Series
00 Series
Swivel Lock Type
No Lock Included
Frame Finish
Zinc Plated
Swivel Bearing Seal Type
Open
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
NSF Listed
No
Swivel Construction
Swivel
Load Capacity - Maximum
225 lb
Brake Location
Right Side
Caster Features
Low Profile
Mounting Hole Type
Slot
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 225 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width Not Applicable, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 2, Caster Brake Type Side Brake, Tread Shape Standard
