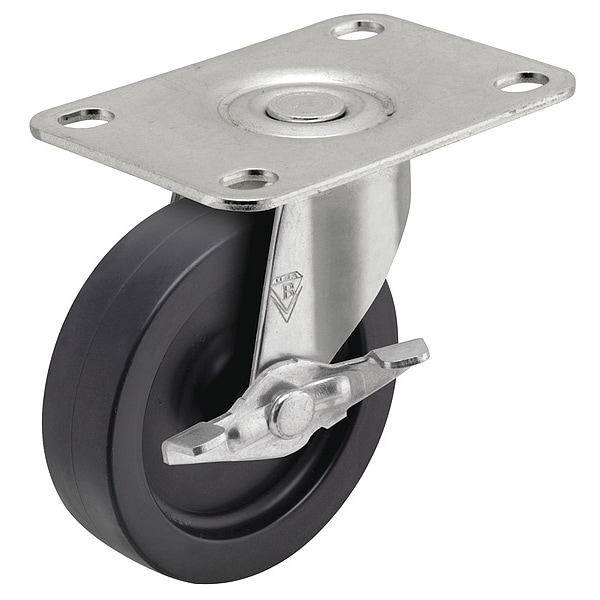

  11. 2" X 13/16" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 90 lb
Shepherd Hardware 2" X 13/16" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 90 lb PRE20108ZN-3EB - main

2" X 13/16" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 90 lb

  • Mfr # PRE20108ZN-3EB

  • Zoro # G7810874

product price: $4.95
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
2 in
Wheel Width
7/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PRE20108ZN-3EB
Zoro #
G7810874
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
2 in
Wheel Width
7/8 in
Mounting Height
2-5/8 in
Mounting Plate Size
1 3/4 in x 2 5/8 in
Mounting Plate Thickness
3/32 in
Mounting Bolt Dia.
9/32 in
Swivel Radius
2 1/8 in
Hub Length
29/32 in
For Axle Dia.
1/4 in
Bolt Hole Spacing - Width
0.969 in
Bolt Hole Spacing - Length
2.125 in
Mounting Plate Length
2 5/8 in
Mounting Plate Width
1 3/4 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
90 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
31/32 in X 2-1/8 in
Inside Bolt Hole Spacing
31/32 in X 2-1/8 in
Caster Plate Hole Pattern
D
Application
Store Fixtures, Carts, Institutional Equipment, Food Serive Equipment, Furniuture, Janitorial , Office Equipment, Racks And Storage Equipment, Medical Equipment
Wheel Core Type
Solid
Frame Finish
Zinc Plated
Includes Thread Guards
No
Standards
RoHS Compliant, NSF Listed
Operating Temperature Range
-20 to 180 Degrees F
NSF Listed
No
Swivel Raceway Type
Double Ball
Wheel Core Material
Polyolefin
Features
Corrosion Resistant, Chemical Resistant
Load Rating Range
0 to 299 lb
ESD Conductive
No
Wheel/Tread Hardness Rating
Hard
Frame Color
Silver
Swivel Lock Type
No Lock Included
Caster Stem Type
Top Plate
Series
Regent
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Load Capacity - Maximum
100 lb
Mounting Hole Type
Hole
Brake Location
Right Side
Mounting Plate Shape
Rectangle

Description

Swivel, Plate Caster, Load Rating 100 lb, Swivel Lock Type No Lock Included, Wheel Dia. 2 in, Wheel Width 7/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
