Shop SHEPHERD HARDWARE

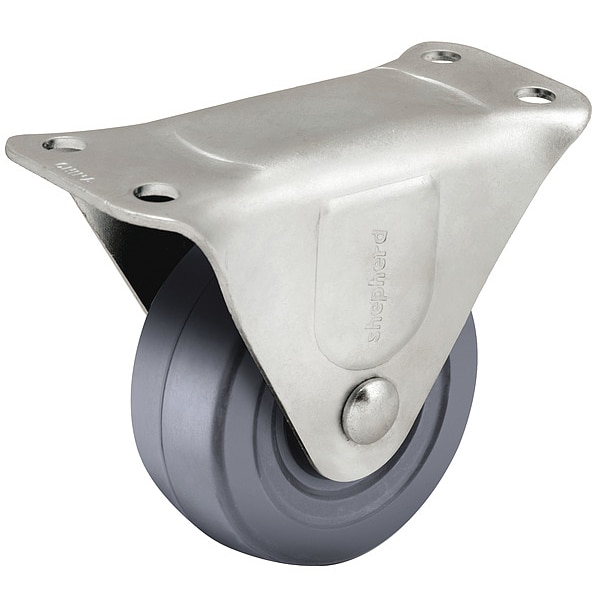

3" X 1-1/4" Non-Marking Polyolefin Rigid Caster, No Brake, Loads Up To 210 lb

  • Mfr # PRQ30124ZN-3E

  • Zoro # G7812509

product price:
$
8.95
/ea

Key Features

Load Rating
210 lb
Series
General Duty
Caster Mounting Type
Plate
Mounting Bolt Dia.
5/16 in
ESD Conductive
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRQ30124ZN-3E
Zoro #
G7812509
UPC #
-
Country of Origin
China

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Dia.
3 in
For Axle Dia.
5/16 in
Hub Length
1 9/16 in
Mounting Plate Size
2 5/16 in x 4 7/8 in
Wheel Width
1 1/4 in
Mounting Height
3 13/16 in
Mounting Plate Length
4 7/8 in
Mounting Plate Width
2 5/16 in
Mounting Plate Thickness
5/32 in
Bolt Hole Spacing - Width
1.188 in
Bolt Hole Spacing - Length
4 in

Details

Load Rating
210 lb
Series
General Duty
Caster Mounting Type
Plate
ESD Conductive
No
Caster Sub-Type
Rigid
Standards
RoHS Compliant, NSF Listed
Tread Shape
Standard
Includes Thread Guards
No
Core Color
Black
Caster Brake Type
No Brake
Operating Temperature Range
-20 to 180 Degrees F
Wheel Core Type
Solid
Swivel Lock Type
No Lock Included
Application
Store Fixtures, Furniture, Material Handling, Institutional Equipment, Industrial Equipment
Wheel Core Material
Polyolefin
Caster Frame Material
Steel
Wheel/Tread Material
Polyolefin
Frame Color
Silver
Features
Economical Mobility Solution
Outside Bolt Hole Spacing
1 3/16 in x 4 in
Load Rating Range
0 to 299 lb
Number of Wheels
1
Caster Plate Hole Pattern
D
Number of Mounting Holes
4
Wheel/Tread Color
Black
Inside Bolt Hole Spacing
1 3/16 in x 4 in
Frame Finish
Zinc Plated
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Non-Marking
Yes
Item
Plate Caster
Wheel/Tread Hardness Rating
Hard
NSF Listed
No
Wheel Bearing Type
Plain
Load Capacity - Maximum
210 lb
Wheel Hardness Rating
70 Shore D
Mounting Hole Type
Hole
Mounting Plate Shape
Rectangle

Description

Rigid, Plate Caster, Load Rating 210 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 1 1/4 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Standard
