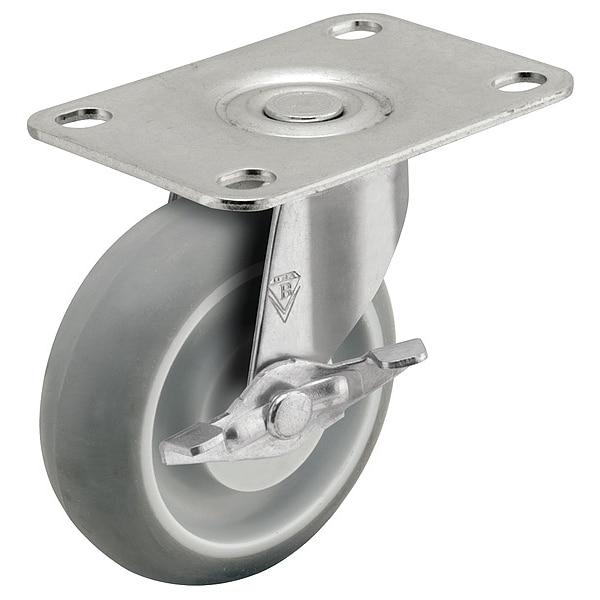

Shepherd Hardware 3" X 13/16" Non-Marking Monotech (Donut) Swivel Caster, Side Brake, Loads Up To 120 lb PRE30120ZN-MNTB - main

3" X 13/16" Non-Marking Monotech (Donut) Swivel Caster, Side Brake, Loads Up To 120 lb

  • Mfr # PRE30120ZN-MNTB

  • Zoro # G7811346

product price:  $15.29
/ea

Key Features

Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Number of Wheels
1
Mounting Bolt Dia.
5/16 in
Wheel Width
7/8 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
PRE30120ZN-MNTB
Zoro #
G7811346
UPC #
-
Country of Origin
United States

Dimensions

Mounting Bolt Dia.
5/16 in
Wheel Width
7/8 in
For Axle Dia.
1/4 in
Wheel Dia.
3 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Hub Length
1 3/32 in
Swivel Radius
2 1/2 in
Mounting Height
3-1/2 in
Mounting Plate Thickness
3/32 in
Inside Slot Spacing - Width
1.75 in
Inside Slot Spacing - Length
2.75 in
Mounting Plate Length
3 3/4 in
Outside Slot Spacing - Width
1.75 in
Mounting Plate Width
2 5/8 in
Outside Slot Spacing - Length
3 in

Details

Number of Mounting Holes
4
Swivel Lock Type
No Lock Included
Number of Wheels
1
Caster Mounting Type
Plate
NSF Listed
No
Tread Shape
Donut
Item
Swivel Caster with Brake
Wheel/Tread Hardness Rating
Soft
Standards
RoHS Compliant, NSF Listed
Load Rating Range
0 to 299 lb
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Non-Marking
Yes
Caster Plate Hole Pattern
C
Wheel/Tread Color
Grey
Caster Stem Type
Top Plate
Frame Color
Silver
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Wheel/Tread Material
Rubber
Series
Regent
Includes Thread Guards
No
Caster Frame Material
Steel
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Load Rating
120 lb
Caster Brake Type
Side Brake
Operating Temperature Range
-45 to 180 Degrees F
Caster Sub-Type
Swivel
ESD Conductive
No
Frame Finish
Zinc Plated
Wheel Core Type
Solid
Core Color
Black
Wheel Bearing Type
Plain
Swivel Raceway Type
Double Ball
Features
Corrosion Resistant, Chemical Resistant
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
Wheel Core Material
Polypropylene
Wheel Hardness Rating
65 Shore A
Load Capacity - Maximum
120 lb
Brake Location
Left Side
Mounting Plate Shape
Rectangle
Mounting Hole Type
Slot
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing

Description

Swivel, Plate Caster, Load Rating 120 lb, Swivel Lock Type No Lock Included, Wheel Dia. 3 in, Wheel Width 7/8 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Donut
