  6. 3" X 13/16" Non-Marking Pvc Swivel Caster, No Brake, Loads Up To 120 lb

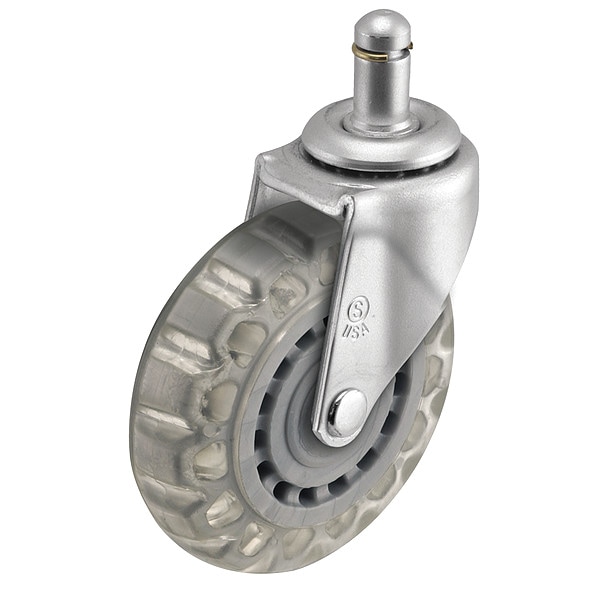

Shepherd Hardware 3" X 13/16" Non-Marking Pvc Swivel Caster, No Brake, Loads Up To 120 lb PRE30273ZN-VPR01(CG) - main

3" X 13/16" Non-Marking Pvc Swivel Caster, No Brake, Loads Up To 120 lb

  • Mfr # PRE30273ZN-VPR01(CG)

  • Zoro # G7809246

product price:  $10.15
/ea

Key Features

Caster Stem Type
Grip Band
Tread Shape
Donut
Wheel Width
13/16 in
Mounting Height
3-1/2 in
Load Rating
120 lb
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
PRE30273ZN-VPR01(CG)
Zoro #
G7809246
UPC #
-
Country of Origin
United States

Dimensions

Wheel Width
13/16 in
Mounting Height
3-1/2 in
Stem Length
1-3/8 in
Wheel Dia.
3 in
Overall Height
4 7/8 in
Caster Stem Size
7/16 in x 1-3/8 in
Stem Dia.
7/16 in

Details

Item
Quality Economic Light Duty Grip Ring Stem Caster
Caster Stem Type
Grip Band
Tread Shape
Donut
Load Rating
120 lb
Load Rating Range
0 to 299 lb
Wheel/Tread Material
Pvc
Application
Store Fixtures, Carts, Institutional Equipment, Food Serive Equipment, Furniuture, Janitorial , Office Equipment, Racks And Storage Equipment, Medical Equipment
Non-Marking
Yes
Caster Brake Type
No Brake
Caster Frame Material
Steel
Wheel Bearing Type
Plain Bore (None)
Number of Wheels
1
Caster Product Group
Swivel Caster
Core Color
Gray
Series
Regent
System of Measurement
Inch
Swivel Raceway Type
Double Ball
Wheel/Tread Color
Clear
Standards
NSF Approved, RoHS Compliant
Swivel Lock Type
No Lock Included
Features
Octagon Washer for Easy Installation, High Strength, Durability, Resistant to Chemicals and Oils
Caster Sub-Type
Swivel
Caster Mounting Type
Stem
Frame Finish
Zinc Plated
Includes Spanner Bushing
No
Wheel Type
Tread on Core
Load Capacity - Maximum
120 lb
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-40 Degrees F
For Surface Type
Asphalt, Ceramic, Grease, Oil, Rubber, Steel, Tile, Vinyl, Wood
Wheel Hardness Rating
85 Shore A
Number of Mounting Holes
0
Wheel Core Type
Solid

Description

Stem Caster, Swivel Caster, 120 lb Load Rating, 0 to 299 lb, 3 in Wheel Dia., 13/16 in Wheel Width, Polyurethane Wheel/Tread Material, 3 1/2 in Mounting Height, Plain, 7/16 in x 1-3/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
