  11. 4" X 1-3/8" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 250 lb

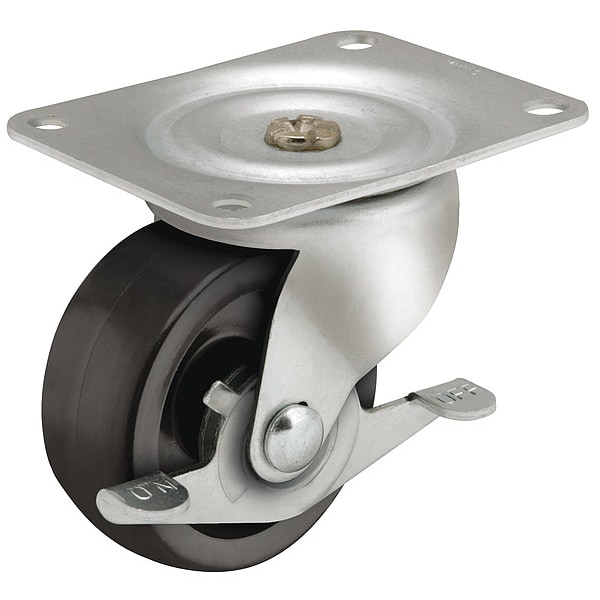

Shepherd Hardware 4" X 1-3/8" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 250 lb PSQ40121ZN-3EB - main

4" X 1-3/8" Non-Marking Polyolefin Swivel Caster, Side Brake, Loads Up To 250 lb

  • Mfr # PSQ40121ZN-3EB

  • Zoro # G7805274

product price: $22.75
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Wheel Dia.
4 in
Wheel Width
1 3/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PSQ40121ZN-3EB
Zoro #
G7805274
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
4 in
Wheel Width
1 3/8 in
Mounting Height
5 in
Mounting Plate Size
4 in x 5 1/8 in
Mounting Plate Thickness
3/16 in
Mounting Bolt Dia.
3/8 in
Swivel Radius
3 9/16 in
For Axle Dia.
3/8 in
Mounting Plate Length
5 1/8 in
Bolt Hole Spacing - Width
3 in
Bolt Hole Spacing - Length
4 in
Mounting Plate Width
4 in

Details

Item
Swivel Caster with Brake
Caster Sub-Type
Swivel
Wheel/Tread Material
Polyolefin
Caster Brake Type
Side Brake
Load Rating
250 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Grey
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
3 in X 4 in
Inside Bolt Hole Spacing
3 in X 4 in
Caster Plate Hole Pattern
D
Swivel Lock Type
No Lock Included
NSF Listed
No
Wheel Core Material
Polyolefin
Caster Stem Type
Top Plate
Series
General Duty
Swivel Raceway Type
Single Ball
Wheel Core Type
Solid
Standards
RoHS Compliant, NSF Listed
Features
Economical Mobility Solution, Nickel Plated Kingpin
Swivel Construction
Swivel
Frame Finish
Zinc Plated
Includes Thread Guards
No
Application
Store Fixtures, Furniture, Material Handling, Institutional Equipment, Industrial Equipment
ESD Conductive
No
Frame Color
Silver
Operating Temperature Range
-20 to 180 Degrees F
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Load Rating Range
0 to 299 lb
Swivel Bearing Seal Type
Open
Wheel/Tread Hardness Rating
Hard
Load Capacity - Maximum
250 lb
Brake Location
Right Side
Mounting Plate Shape
Rectangle
Mounting Hole Type
Hole

Description

Swivel, Plate Caster, Load Rating 250 lb, Swivel Lock Type No Lock Included, Wheel Dia. 4 in, Wheel Width 1 3/8 in, Wheel/Tread Material Polyolefin, Wheel Core Material Polyolefin, Non-Marking Yes, Number of Wheels 1, Caster Brake Type Side Brake, Tread Shape Standard
