  6. 4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb

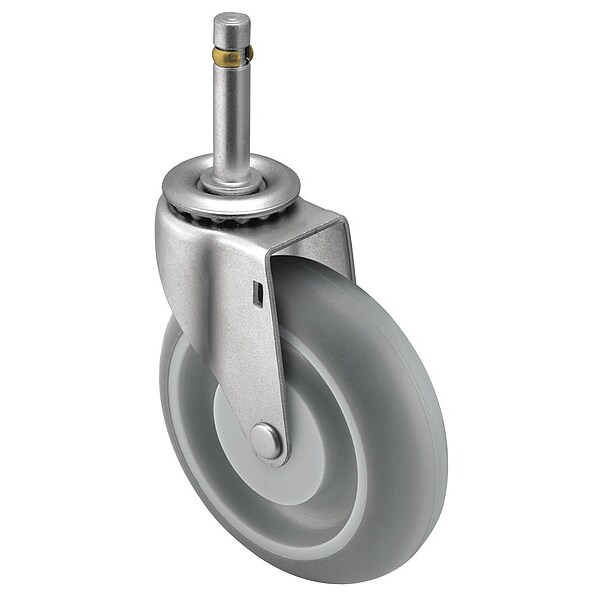

Shepherd Hardware 4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb PRE40273ZN-MNT - main

4" X 15/16" Non-Marking Monotech (Donut) Swivel Caster, No Brake, Loads Up To 150 lb

  • Mfr # PRE40273ZN-MNT

  • Zoro # G7808169

product price:  $14.49
/ea

Key Features

Swivel Lock Type
No Lock Included
Non-Marking
Yes
System of Measurement
Inch
Wheel Bearing Type
Plain
Standards
NSF Approved, RoHS Compliant
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
PRE40273ZN-MNT
Zoro #
G7808169
UPC #
-
Country of Origin
United States

Dimensions

Stem Length
1-3/8 in
Overall Height
4 3/4 in
Wheel Dia.
4 in
Wheel Width
1 in
Stem Dia.
7/16 in
Mounting Height
4-3/4 in
Tire Thickness
1/4 in
Caster Stem Size
7/16 in x 1 3/8 in

Details

Swivel Lock Type
No Lock Included
Non-Marking
Yes
System of Measurement
Inch
Wheel Bearing Type
Plain
Standards
NSF Approved, RoHS Compliant
Load Rating
150 lb
Operating Temperature Range
-45 to 180 Degrees F
Frame Finish
Zinc Plated
Number of Wheels
1
Wheel/Tread Material
Rubber
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Caster Brake Type
No Brake
Series
Regent
Load Rating Range
0 to 299 lb
Swivel Raceway Type
Double Ball
Wheel Type
Tread on Core
Caster Mounting Type
Stem
Caster Frame Material
Steel
Item
Swivel Caster
Caster Sub-Type
Swivel
Tread Shape
Donut
Wheel/Tread Color
Grey
Core Color
Black
Features
Octagon Washer for Easy Installation, High Strength, Durability, Ultimate Floor Protection, Cushioned Ride, Easier Rollability and Maneuverability
Caster Stem Type
Friction Ring
Swivel Construction
Swivel
Includes Thread Guards
No
NSF Listed
No
Wheel Core Material
Polypropylene
Wheel/Tread Hardness Rating
Soft
Swivel Bearing Seal Type
Open
Number of Mounting Holes
0
Operating Temperature - Maximum
180 Degrees F
Operating Temperature - Minimum
-45 Degrees F
Wheel Hardness Rating
65 Shore A
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Load Capacity - Maximum
150 lb

Description

Stem Caster, Swivel Caster, 150 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Rubber Wheel/Tread Material, 4 3/4 in Mounting Height, Plain, 7/16 in x 1 3/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
