  6. 4" X 15/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 150 lb

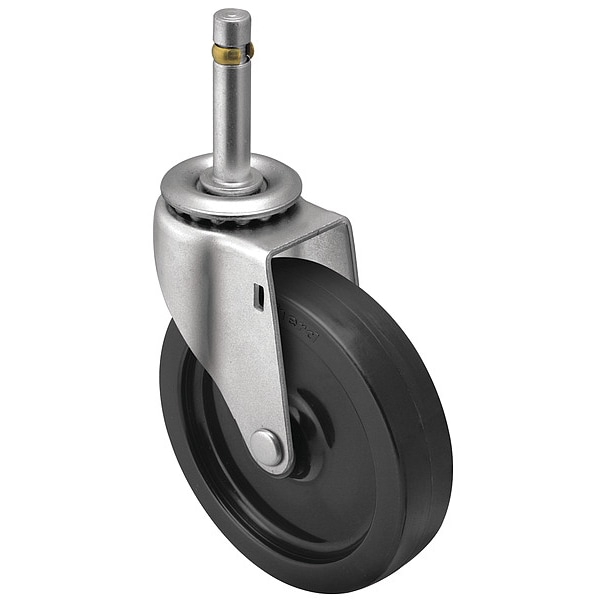

Shepherd Hardware 4" X 15/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 150 lb PRE40273ZN-3E - main
Shop SHEPHERD HARDWARE

4" X 15/16" Non-Marking Polyolefin Swivel Caster, No Brake, Loads Up To 150 lb

  • Mfr # PRE40273ZN-3E

  • Zoro # G7808467

product price:  $11.65
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Wheel Dia.
4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PRE40273ZN-3E
Zoro #
G7808467
UPC #
-
Country of Origin
United States

Dimensions

Wheel Dia.
4 in
Wheel Width
1 in
Mounting Height
4-3/4 in
Stem Length
1-3/8 in
Overall Height
4 3/4 in
Stem Dia.
7/16 in
Caster Stem Size
7/16 in x 1 3/8 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Polypropylene
Caster Brake Type
No Brake
Load Rating
150 lb
Caster Mounting Type
Stem
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
70 Shore D
Number of Mounting Holes
0
Tread Shape
Standard
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Swivel Lock Type
No Lock Included
Series
Regent
Swivel Raceway Type
Double Ball
Standards
NSF Approved, RoHS Compliant
Application
Store Fixtures, Carts, Institutional Equipment, Food Service Equipment, Furniture, Janitorial Equipment, Office Equipment, Racks and Storage Equipment, Medical Equipment
Wheel Type
Solid
Caster Stem Type
Friction Ring
Frame Finish
Zinc Plated
Load Rating Range
0 to 299 lb
Operating Temperature Range
-20 to 180 Degrees F
Wheel Core Material
Polyolefin
Features
Octagon Washer for Easy Installation, High Strength, Durability, Resistant to Frequent Wash-Downs, Oil, Grease, Cleaning Solutions and Most Chemicals, High-Impact Strength, Lightweight Injection Molded Construction
Wheel/Tread Hardness Rating
Hard
Includes Thread Guards
No
Swivel Construction
Swivel
Swivel Bearing Seal Type
Open
NSF Listed
No
Operating Temperature - Minimum
-20 Degrees F
Wheel Core Type
Solid
For Surface Type
Asphalt, Ceramic, Grease, Oil, Steel
Operating Temperature - Maximum
180 Degrees F
Load Capacity - Maximum
150 lb

Description

Stem Caster, Swivel Caster, 150 lb Load Rating, 0 to 299 lb, 4 in Wheel Dia., 1 in Wheel Width, Polypropylene Wheel/Tread Material, 4 3/4 in Mounting Height, Plain, 7/16 in x 1 3/8 in Caster Stem Size, Friction Ring, Steel Caster Frame Material, Zinc Plated Frame Finish, Yes Non-Marking, 1 Number of Wheels
