  11. 40mm Non-Marking Nylon Swivel Caster, No Brake, Loads Up To 40 lb

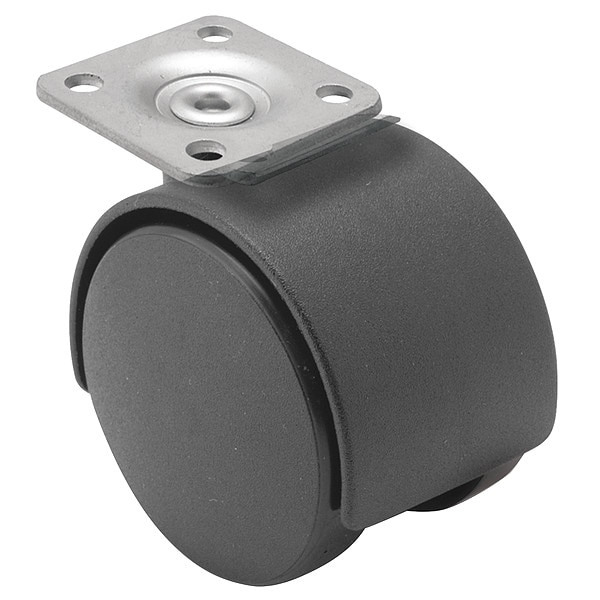

Shepherd Hardware 40mm Non-Marking Nylon Swivel Caster, No Brake, Loads Up To 40 lb PTW40101BK - main

40mm Non-Marking Nylon Swivel Caster, No Brake, Loads Up To 40 lb

  • Mfr # PTW40101BK

  • Zoro # G7806470

product price: $4.39
/ea

Key Features

Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Wheel Dia.
1 5/8 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PTW40101BK
Zoro #
G7806470
UPC #
-
Country of Origin
China

Dimensions

Wheel Dia.
1 5/8 in
Mounting Height
2-1/4 in
Mounting Plate Size
1 1/2 in x 1 1/2 in
Mounting Plate Thickness
3/32 in
Mounting Bolt Dia.
3/16 in
Swivel Radius
1 11/16 in
Mounting Plate Length
1 1/2 in
Bolt Hole Spacing - Width
1 in
For Axle Dia.
6 mm
Overall Wheel Width
1 1/4 in
Bolt Hole Spacing - Length
1 in
Mounting Plate Width
1 1/2 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
System of Measurement
Inch
Wheel/Tread Material
Nylon
Caster Brake Type
No Brake
Load Rating
40 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Plain
Wheel/Tread Color
Black
Wheel Hardness Rating
85 Shore D
Number of Mounting Holes
4
Tread Shape
Standard
Caster Frame Material
Nylon
Core Color
Black
Non-Marking
Yes
Number of Wheels
2
Outside Bolt Hole Spacing
1 in X 1 in
Inside Bolt Hole Spacing
1 in X 1 in
Caster Plate Hole Pattern
D
Features
Economical Twin Wheel Mobility Solutions, Steel Axle and Fastening
Series
Source II
Wheel Core Type
Solid
Frame Finish
Black
ESD Conductive
No
Frame Color
Gray
Load Rating Range
0 to 299 lb
Wheel Core Material
Nylon
Caster Stem Type
Top Plate
Application
Store Fixtures, Furniture, Display Units, Utility Carts, Office Equipment, Medical Equipment
Swivel Lock Type
No Lock Included
Wheel/Tread Hardness Rating
Hard
Swivel Bearing Seal Type
Open
Includes Thread Guards
No
Swivel Construction
Swivel
NSF Listed
No
Load Capacity - Maximum
40 lb
For Surface Type
Asphalt, Ceramic, Grease, Rubber, Steel, Tile, Wood
Mounting Hole Type
Hole
Mounting Plate Shape
Square

Description

Swivel, Plate Caster, Load Rating 40 lb, Swivel Lock Type No Lock Included, Wheel Dia. 1 5/8 in, Wheel Width Not Applicable, Wheel/Tread Material Nylon, Wheel Core Material Nylon, Non-Marking Yes, Number of Wheels 2, Caster Brake Type No Brake, Tread Shape Standard
