  11. 5" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Partial Thread Guard, Loads Up To 300 lb
Shepherd Hardware 5" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Partial Thread Guard, Loads Up To 300 lb PGS50120ZN-DMT32(GG) - main

5" X 1-1/4" Non-Marking Monotech (Donut) Swivel Caster, Partial Thread Guard, Loads Up To 300 lb

  • Mfr # PGS50120ZN-DMT32(GG)

  • Zoro # G7812676

product price: $25.49
/ea

Key Features

Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Wheel Dia.
5 in
Wheel Width
1 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
PGS50120ZN-DMT32(GG)
Zoro #
G7812676
UPC #
-
Country of Origin
China

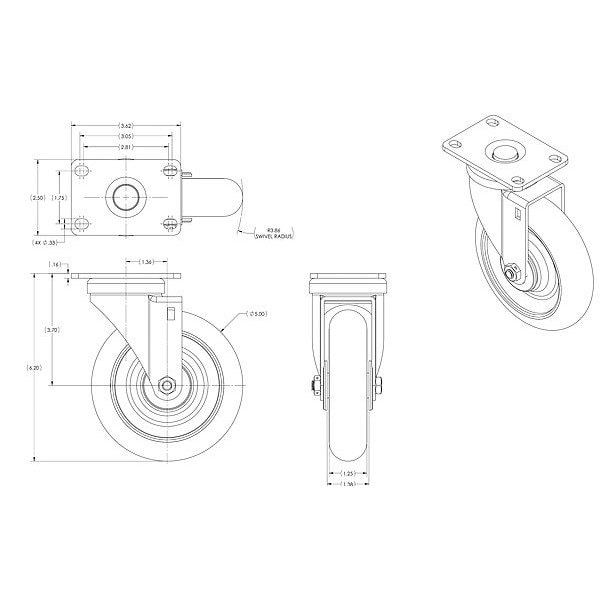

Dimensions

Wheel Dia.
5 in
Wheel Width
1 1/4 in
Mounting Height
6-1/4 in
Mounting Plate Size
2 5/8 in x 3 3/4 in
Mounting Plate Thickness
5/32 in
Mounting Bolt Dia.
5/16 in
For Axle Dia.
3/8 in
Swivel Radius
3 7/8 in
Hub Length
1 5/8 in
Inside Slot Spacing - Length
2.75 in
Inside Slot Spacing - Width
1.75 in
Outside Slot Spacing - Length
3 in
Mounting Plate Length
3 5/8 in
Mounting Plate Width
2 1/2 in
Outside Slot Spacing - Width
1.75 in

Details

Item
Swivel Caster
Caster Sub-Type
Swivel
Wheel/Tread Material
Rubber
Caster Brake Type
No Brake
Load Rating
300 lb
Caster Mounting Type
Plate
Wheel Bearing Type
Ball
Wheel/Tread Color
Grey
Wheel Hardness Rating
75 Shore A
Number of Mounting Holes
4
Tread Shape
Donut
Caster Frame Material
Steel
Core Color
Black
Non-Marking
Yes
Number of Wheels
1
Outside Bolt Hole Spacing
1-3/4 in X 3 in
Inside Bolt Hole Spacing
1-3/4 in X 2-3/4 in
Caster Plate Hole Pattern
C
Series
Institutional
Frame Color
Silver
Includes Thread Guards
Yes
NSF Listed
No
Application
Store Fixtures, Stoage Equipment, Utility Carts, Institutional Equipment, Office Equipment, Food Service, Material Handling Equipment, Hospitality Carts
Swivel Lock Type
No Lock Included
Features
High Strength Steel, Raceway Dust Cap
Load Rating Range
300 to 999 lb
Operating Temperature Range
-45 to 180 Degrees F
Swivel Raceway Type
Precision Ball
Standards
RoHS
Wheel/Tread Hardness Rating
Soft
For Surface Type
Asphalt, Ceramic, Metal Scrap, Rubber, Steel, Tile, Vinyl, Wood
Wheel Core Type
Solid
Caster Stem Type
Top Plate
Frame Finish
Zinc Plated
ESD Conductive
No
Wheel Core Material
Polypropylene
Swivel Bearing Seal Type
Open
Swivel Construction
Swivel
Load Capacity - Maximum
300 lb
Mounting Plate Shape
Rectangle
Caster Features
Debris-Resistant, Quiet-Roll, Shock-Absorbing
Mounting Hole Type
Slot

Description

Swivel, Plate Caster, Load Rating 300 lb, Swivel Lock Type No Lock Included, Wheel Dia. 5 in, Wheel Width 1 1/4 in, Wheel/Tread Material Rubber, Wheel Core Material Polypropylene, Non-Marking Yes, Number of Wheels 1, Caster Brake Type No Brake, Tread Shape Donut
