  9. Digital Force Gauge, Range 1000 lb., USB

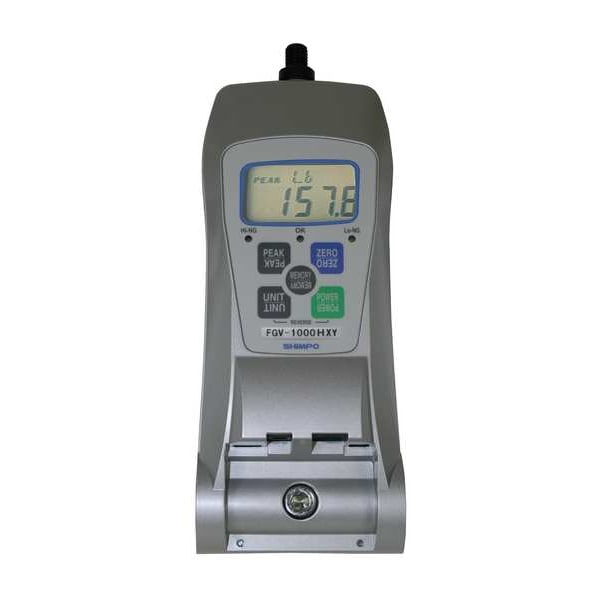

Shimpo Digital Force Gauge, Range 1000 lb., USB FGV-1000HXY - main

Digital Force Gauge, Range 1000 lb., USB

  • Mfr # FGV-1000HXY

  • Zoro # G5267656

product price: $1,794.99
/ea
Free Shipping & Returns

Key Features

Display
4 Digit LCD
Accuracy
+/-0.2% FS
Includes
(2) Handles, AC Adapter, Carrying Case, Metric to Inch Thread Adapter, USB Cable
Measuring Units
kg, lb, N
Range
1,000 lb., 4448 N, 453.6kg
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
FGV-1000HXY
Zoro #
G5267656
UPC #
-
Country of Origin
Japan

Dimensions

Manufacturers Warranty Length
2 yr
Manufacturer Warranty Length
2 yr

Details

Item
Digital Force Gauge
Display
4 Digit LCD
Accuracy
+/-0.2% FS
Includes
(2) Handles, AC Adapter, Carrying Case, Metric to Inch Thread Adapter, USB Cable
Measuring Units
kg, lb, N
Range
1,000 lb., 4448 N, 453.6kg
Power Source
AC Adapter, Battery
Auto Power Off
Yes
Resolution
0.1 lb, 0.1kg, 1 N
Memory
Continuous Memory 1000 Points, Single Memory 100 Points, Standard memory 50 Points and Statistics (Max, Min, Peak, Average and Standard Deviation)
Sampling Rate
1,000 Hz
Output Type
USB/RS-232/Analog
Measurement Modes
Real Time, Compression Peak, Tension Peak, Comparator
Interface
RS-232, USB
Function
Hi-Lo Comparator with Indicator, Memory Mode, Peak Hold for Tension and Compression
Green Environmental Attribute
Product is Rechargeable
Gauge Adapters Included
Chisel, Cone, Extension Rod, Flat Head, Hook
Force Resolution
0.1 Kg, 0.1 lb, 1 N
Force Accuracy
+/-0.2% FS
Batteries Included
Yes
Number of Batteries Required
1
Battery Chemistry
Nickel-Cadmium
Battery Run Time
17 hr
Maximum Force Measured
1,000 lbf
Number of Digits
4
Display Type
Analog
Number of Records Stored
1,000
Digital Display Screen Type
LCD
Minimum Force Measured
0.1 lbf

Description

Digital Force Gauge, Maximum Force Measured 1,000 lbf, Minimum Force Measured 0.1 lbf, Force Resolution 0.1 Kg, 0.1 lb, 1 N, Force Accuracy +/-0.2 Percent FS, Measuring Units kg, lb, N, Display Type Analog, Includes (2) Handles, AC Adapter, Carrying Case, Metric to Inch Thread Adapter, USB Cable, Digital Display Screen Type LCD, Number of Records Stored 1,000, Auto Power Off Yes, Interface RS-232, USB, Manufacturer Warranty Length 2 yr

Restrictions

Hazardous material
