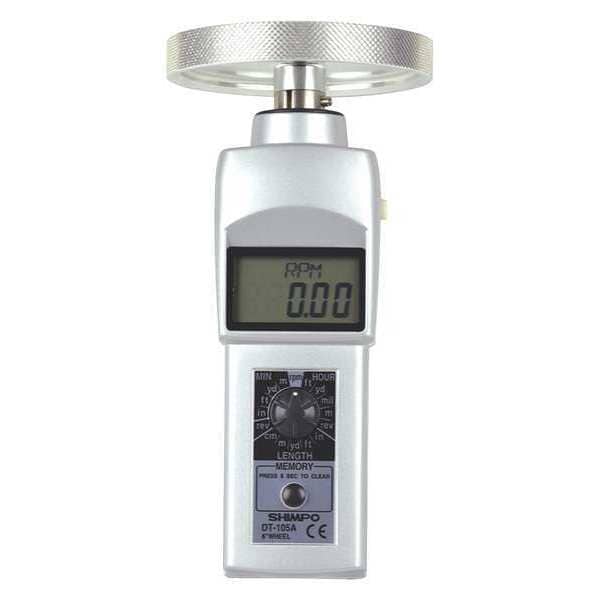

Shimpo Tachometer, 5 Digit LCD, NIST DT-105A-12KMW - main

Tachometer, 5 Digit LCD, NIST

  • Mfr # DT-105A-12KMW

  • Zoro # G1155968

product price: $605.99
/ea
Free Shipping & Returns

Key Features

Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Funnel Adapter, Master Wheel (6 in cir.)
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Cast Aluminum Housing
RPM Resolution
1 RPM
Contact / Noncontact
Contact
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DT-105A-12KMW
Zoro #
G1155968
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Battery Size
AA
Manufacturer Warranty Length
2 yr

Details

Item
Tachometer
Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Funnel Adapter, Master Wheel (6 in cir.)
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Cast Aluminum Housing
RPM Resolution
1 RPM
Contact / Noncontact
Contact
Display
5 digit LCD
Memory
Max/Min/Last/10 Extra Readings
Standards
CE
Contact RPM Range
0.10 to 25,000
Speed (FPM)
0.10 to 25,000
Speed (M/Min)
0.03 to 7620
Speed Accuracy
+/-0.006% of Reading +/-1
Calibration Certificate
NIST
Velocity
0.0011 to 284.09 mpg, 0.03 to 7620m/min., 0.03 to 99,999 yd./min., 0.1 to 25,000 ft./min., 1.2" to 99,999"/min., 1.8 to 99,999m/hr., 2.0 to 99,999 yd./hr., 6 to 99,999 ft./hr.
Indicator
Low Battery, Over Range
Maximum Operating Temperature
113 Degrees F
Minimum Operating Temperature
32 Degrees F
Minimum Velocity Measured
0.05 fpm
Contact Adaptors Included
Cone Tip, Funnel
Number of Batteries Required
2
Minimum Contact RPM
0.1 RPM
Contact Type
Contact
Maximum Velocity Measured
12,500 fpm
Batteries Included
Yes
Battery Run Time
65 hr
Maximum Contact RPM
25,000 RPM
Digital Display Screen Type
LCD
Battery Voltage
1.5V
Rotational Speed Measuring Units
ft/min, in/min, m/min, yd/min
Calibration Certificate Type
NIST
Number of Digits
5

Description

Tachometer, RPM Accuracy +/-0.006 Percent, RPM Resolution 1 RPM, Maximum Contact RPM 25,000 RPM, Minimum Contact RPM 0.1 RPM, Maximum Non-Contact RPM Not Applicable, Minimum Non-Contact RPM Not Applicable, Maximum Non-Contact Distance Not Applicable, Minimum Non-Contact Distance Not Applicable, Calibration Certificate Type NIST, Maximum Velocity Measured 12,500 fpm, Minimum Velocity Measured 0.05 fpm
