  9. Tachometer, 6 to 99,999 rpm
Shimpo Tachometer, 6 to 99,999 rpm DT-207LR - main

Tachometer, 6 to 99,999 rpm

  • Mfr # DT-207LR

  • Zoro # G5302114

product price: $344.99
/ea
Free Shipping & Returns

Key Features

Includes

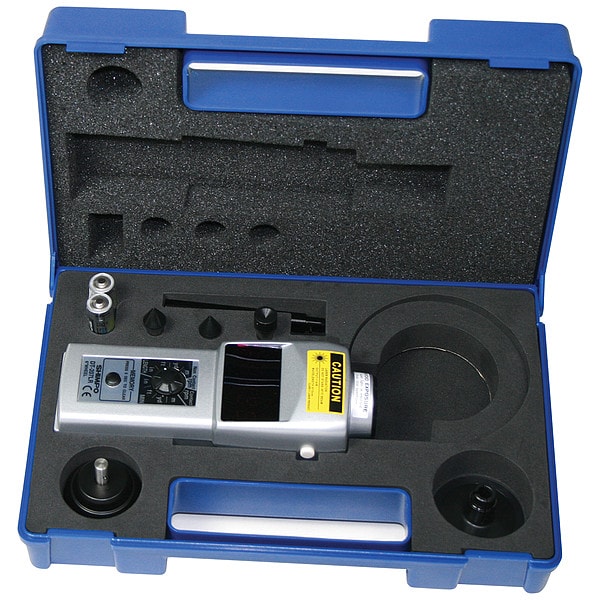

(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Laser Measures from Distances
RPM Resolution
1 RPM
Contact / Noncontact
Contact and Noncontact
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
DT-207LR
Zoro #
G5302114
UPC #
-
Country of Origin
Taiwan, Province of China

Dimensions

Manufacturer Warranty Length
2 yr
Battery Size
AA

Details

Item
Tachometer
Includes
(2) Cone Adapters, 3.5 in Extension Shaft, Carrying Case, Contact Adapter, Funnel Adapter, Master Wheel (6 in cir.), Reflective Tape
RPM Accuracy
+/-0.006%
Features
Built-In Memory 10 Separate Readings, Laser Measures from Distances
RPM Resolution
1 RPM
Contact / Noncontact
Contact and Noncontact
Display
5 Digit LED
Memory
Last/Min/Max
Standards
CE
Contact RPM Range
0.8 to 25,000
Speed (FPM)
0.40 to 12,500
Speed (M/Min)
0.11 to 3810
Speed Accuracy
+/-0.06% of Reading +/-1 Digit
Light Source
Laser
Working Distance
20 ft
Calibration Certificate
NIST
Noncontact RPM Range
6 to 99,999
Battery Voltage
1.5V
Minimum Operating Temperature
32 Degrees F
Maximum Velocity Measured
12,500 fpm
Maximum Non-Contact Distance
20 ft
Minimum Velocity Measured
0.4 fpm
Batteries Included
Yes
Digital Display Screen Type
LED
Calibration Certificate Type
NIST
Minimum Non-Contact Distance
1 in
Maximum Non-Contact RPM
99,999 RPM
Contact Type
Contact, Non-Contact
Battery Run Time
25 hr
Maximum Operating Temperature
113 Degrees F
Maximum Contact RPM
25,000 RPM
Number of Batteries Required
2
Minimum Non-Contact RPM
6 RPM
Rotational Speed Measuring Units
ft/min, in/min, m/min, RPM, yd/min
Minimum Contact RPM
0.8 RPM
Number of Digits
5
Contact Adaptors Included
Cone Tip, Funnel

Description

Tachometer, RPM Accuracy +/-0.006 Percent, RPM Resolution 1 RPM, Maximum Contact RPM 25,000 RPM, Minimum Contact RPM 0.8 RPM, Maximum Non-Contact RPM 99,999 RPM, Minimum Non-Contact RPM 6 RPM, Maximum Non-Contact Distance 20 ft, Minimum Non-Contact Distance 1 in, Calibration Certificate Type NIST, Maximum Velocity Measured 12,500 fpm, Minimum Velocity Measured 0.4 fpm
