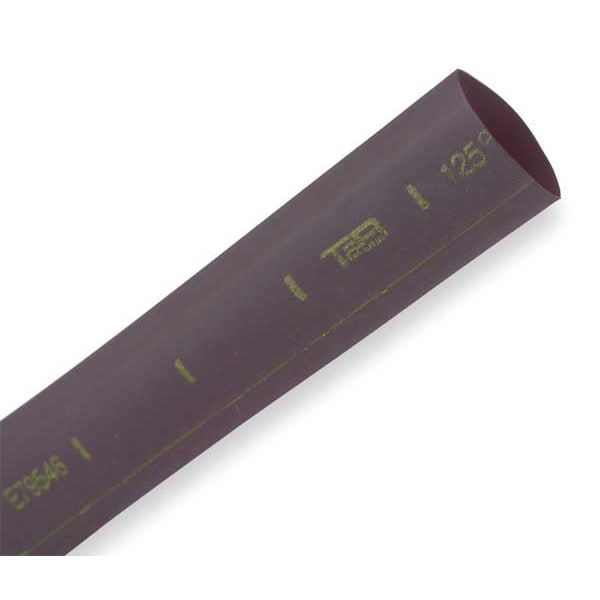

Heat Shrink Tube, Thin Wall, 2:1 I.D. Shrink Ratio, 0.5 in I.D. Before Shrinking, Black, 6 in
- Mfr # CPO50006
- Zoro # G2322591
product price:Â
$
8.75
/pk of 10, $0.88/ea
Key Features
Shrink Ratio
2:1
Wall Type
Thin Wall
Shrink Tubing I.D. After Shrinking
1/4 in
Material
Cross-Linked Polyolefin
Color
Black
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- CPO50006
- Zoro #
- G2322591
- UPC #
- 786210851723
- Country of Origin
- China
- Item
- Heat Shrink Tube
- Shrink Ratio
- 2:1
- Wall Type
- Thin Wall
- Shrink Tubing I.D. After Shrinking
- 1/4 in
- Material
- Cross-Linked Polyolefin
- Color
- Black
- Temp. Range
- 131 Degrees F to 347 Degrees F
- Min. Shrink Temp.
- 248 Degrees F
- Flame Retardant
- Yes
- Shrink Tubing I.D. Before Shrinking
- 1/2 in
- Features
- Flame Retardant
- Max. Voltage
- 600V
- Standards
- AMS-3636 and 3637, CSA 22.2 No. 198.1, 125 Degrees C, DEF STAN 59-97, Issue 3, Type 2a, MIL-DTL-23053/5 Class 1 and 2, UL 224, 125 Degrees C
- Tubing Wall Type
- Thin Wall
- Adhesive Lined
- No
- Min. Temp. Rating
- 131 Degrees F
- Dielectric Strength
- 600 V
- Max. Temp. Rating
- 347 Degrees F
- Package Style
- Individual Pieces
- Nominal Recovered Wall (inches)
- 0.025
- I.D. After Shrinking
- 0.25 in
- I.D. Before Shrinking
- 0.5 in
- Shell Material
- Cross-Linked Polyolefin
Description
Heat Shrink Tubing, Thin Wall, Material Cross-Linked Polyolefin, Flame Retardant Yes, Adhesive Lined No, Shrink Ratio 2:1, Use With Wire Size 6 AWG to 1 AWG, I.D. Before Shrinking 0.5 in, I.D. After Shrinking 0.25 in, Wall Thickness After Shrinking 0.03 In., Length 6 in, Color Black, Temp. Range 131 Degrees F to 347 Degrees F, Package Style Individual Pieces, Min. Shrink Temp. 248 Degrees F, Dielectric Strength 600 V, Max. Temp. Rating 347 Degrees F, Min. Temp. Rating 131 Degrees F
