Encoder

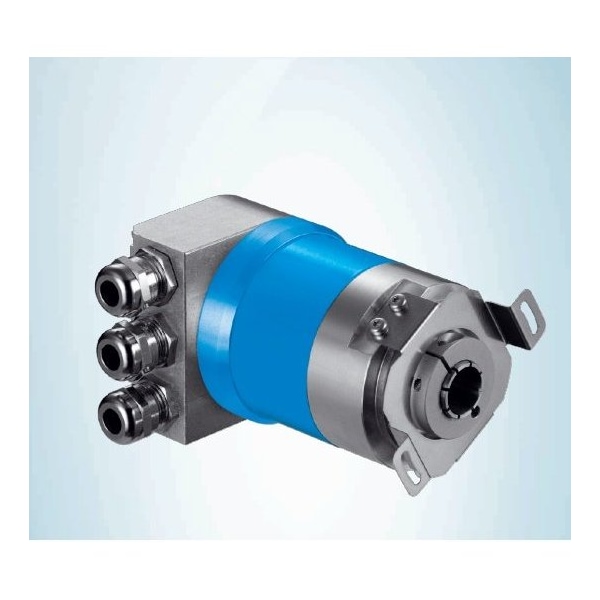

This is an absolute rotary encoder from the SICK ATM60 series designed for precise position and speed measurement in industrial automation systems. It provides high-resolution feedback using PROFIBUS communication for accurate motion control applications. Specifications: -Model: ATM60-PAH13X13 -Part Number: 1030015 -Type: Absolute rotary encoder -Measuring Principle: Optical -Resolution: 13-bit single turn (8,192 steps) -Multi-turn Resolution: 13-bit (8,192 revolutions) -Total Resolution: 13-bit x 13-bit -Interface: PROFIBUS DP (DPV0) -Communication Protocol: Encoder profile Class 2 (07hex) -Supply Voltage: 10-32 V DC -Power Consumption: ≤ 2 W (no load) -Connection Type: Bus adapter (PROFIBUS) -Shaft Type: Blind hollow shaft -Shaft Diameter: 15 mm -Housing Material: Aluminum die-cast -Flange Material: Aluminum -Shaft Material: Stainless steel -Operating Speed: ≤ 3000 rpm -Accuracy: ±0.25 deg -Repeatability: 0.1 deg -Protection Class: IP67 -Operating Temperature: -20 deg C to +85 deg C -Storage Temperature: -40 deg C to +100 deg C -Shock Resistance: 100 g (6 ms) -Vibration Resistance: 20 g (10-2000 Hz) -Weight: 0.59 kg -Initialization Time: -1250 ms
