Photoelectric Safety Sensor

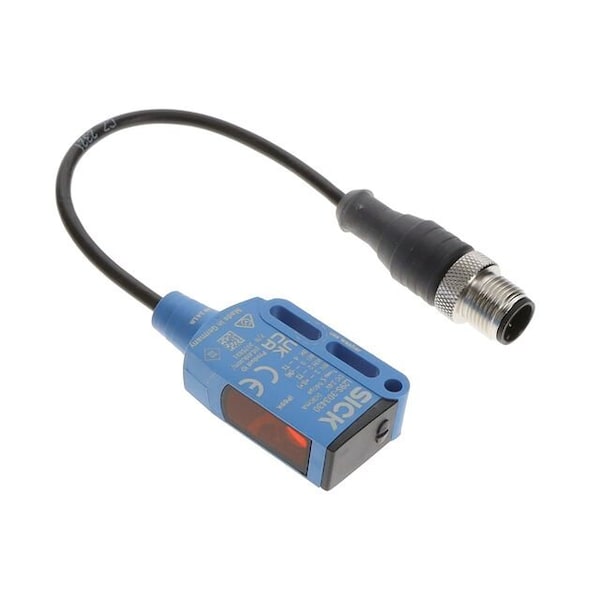

This is a single-beam photoelectric safety sensor from the SICK L29 series designed for safety monitoring in industrial automation. It is used for object detection and machine safety applications with high environmental resistance and compact design. Specifications: -Model: L29S-3D3430 -Type: Single-beam photoelectric safety sensor (transmitter unit) -Function: Safety light beam / object detection -Operating Principle: Photoelectric (LED red light) -Light Source: LED (visible red, -650 nm) -Scanning Range: up to 6 m -Response Time: -0.54 ms -Supply Voltage: 24 V DC (19.2-30 V DC) -Current Consumption: ≤ 30 mA -Output Type: PNP switching output -Connection Type: M12 4-pin connector -Protection Class: IP65 / IP66 / IP67 / IP69K -Housing Material: VISTAL -Operating Temperature: -40 deg C to +60 deg C -Storage Temperature: -40 deg C to +75 deg C -Vibration Resistance: 5-150 Hz, 1 g -Shock Resistance: 15 g / 6 ms -Dimensions: 12.2 x 50 x 23.6 mm -Light Spot Diameter: -25 mm (at 1 m) -Service Life: -100,000 hours
