  13. 240VAC Reversing Magnetic Contactor 3P 40A NEMA 1-3/4

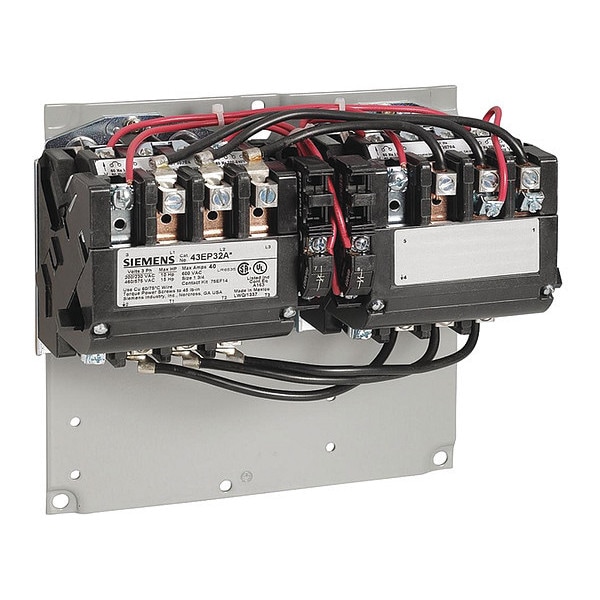

Siemens 240VAC Reversing Magnetic Contactor 3P 40A NEMA 1-3/4 43EP32AA - main

240VAC Reversing Magnetic Contactor 3P 40A NEMA 1-3/4

  • Mfr # 43EP32AA

  • Zoro # G6370813

product price: $1,280.99
/ea
Free Shipping & Returns

Key Features

Action
Reversing
Full Load Amps
40 A
Number of Poles
3
NEMA Contactor Size
1-3/4
Coil Volts
240V AC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
43EP32AA
Zoro #
G6370813
UPC #
783087078130
Country of Origin
Mexico

Dimensions

NEMA Contactor Size
1-3/4
Height
7.69 in
Width
7.75 in
Depth
3.88 in
NEMA Size
1-3/4
Mounting Hole Diameter
0.28 in
Overall Width
7.75 in
Overall Depth
3.88 in
Mounting Hole Distance - Width
7.25 in
Overall Height
7.69 in

Details

Item
Magnetic Contactor
Action
Reversing
Full Load Amps
40 A
Number of Poles
3
Coil Volts
240V AC
Reversing
Yes
HP @ 3 Phase - 208V
10 hp
HP @ 3 Phase - 575V
15 hp
HP @ 3 Phase - 240V
10 hp
HP @ 3 Phase - 480V
15 hp
Enclosure NEMA Rating
No Enclosure
Hz
60
Auxiliary Contact Form
2NO/2NC
Frame / Series / Class / Code
Class 43
Standards
REACH Art 33
Series
43
Mounting Postion
Vertical
NEMA Enclosure Rating
No Enclosure
Horsepower @ Three Phase - 240V AC
10 hp
Mechanical Operating Durability
10,000,000
Reversing Capability
Reversing
Frequency
60 Hz
Mounting Style
Surface
Horsepower @ Three Phase - 480V AC
15 hp
Horsepower @ Three Phase - 208V AC
10 hp
Maximum Voltage Rating
600V AC
Contactor Style
NEMA
Number of Auxillary Contacts
4
Maximum Operating Temperature
104 Degrees F
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
15 hp
Embedded Surge Suppressor
No
Number of Normally Closed Main Contacts
0
Full Load Current - Inductive
40 A
Response Time
10 to 24 msec (OFF-Delay Time), 19 to 29 msec (ON-Delay Time)
Full Load Current - Resistive
Not Rated
Minimum Operating Temperature
-4 Degrees F
Coil Voltage
110-120/220-240V AC
Terminal Connection Type
Screw Terminals
Auxiliary Contact Module Capacity
8
Phase
Three
Number of Normally Open Main Contacts
3

Description

NEMA Magnetic Contactor, Auxiliary Contact Form 2NO/2NC, NEMA Enclosure Rating No Enclosure, NEMA Size 1-3/4, Coil Voltage 110-120/220-240V AC, Number of Poles 3, Full Load Current - Inductive 40 A, Full Load Current - Resistive Not Rated, Reversing Capability Reversing, Overall Height 7.69 in, Overall Width 7.75 in, Auxiliary Contact Module Capacity 8, Terminal Connection Type Screw Terminals, Mounting Style Surface, Series 43, Number of Auxillary Contacts 4, Contactor Style NEMA
