Shop SIEMENS

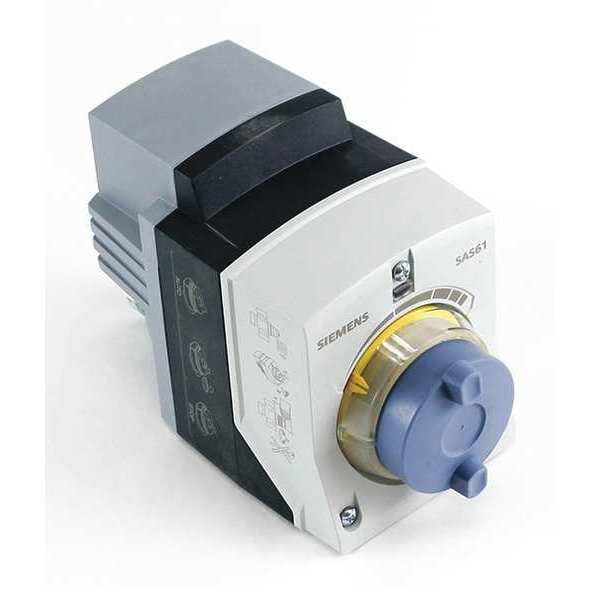

Actuator

  • Mfr # SAS61.33U

  • Zoro # G4479581

product price:
$
339.99
/ea
Free Shipping & Returns

Key Features

Application
Heating, Ventilation
Product Type
Electric Valve Actuator
Power Consumption
3 VA
Installation Orientation
Horizontal
Overall Width
93 mm
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
SAS61.33U
Zoro #
G4479581
UPC #
-
Country of Origin
Switzerland

Dimensions

Overall Width
93 mm
Overall Height
80 mm
Electrical Lead Length
1 m
Stroke Length
5.5 mm
Overall Depth
151 mm

Details

Item
Electric Valve Actuator
Application
Heating, Ventilation
Product Type
Electric Valve Actuator
Power Consumption
3 VA
Installation Orientation
Horizontal
Operating Temperature - Minimum
-5 Degrees C
Frequency
45 to 65 Hz
Operating Temperature - Maximum
55 Degrees C
Electrical Connection Type
Cable
Standards
EN 10204 (type 2.2), EU Declaration, RCM
Mounting Style
Direct Mount
Cycle Time
30 sec
Voltage
24V AC/DC
Return Action
Spring Return

Description

Electric Valve Actuator, Application Heating, Ventilation, Cycle Time 30 sec, Electrical Connection Type Cable, Electrical Lead Length 1 m, Frequency 45 to 65 Hz, Installation Orientation Horizontal, Mounting Style Direct Mount, Operating Temperature - Maximum 55 Degrees C, Operating Temperature - Minimum -5 Degrees C, Overall Depth 151 mm, Overall Height 80 mm, Overall Width 93 mm, Power Consumption 3 VA, Product Type Electric Valve Actuator
