  9. Contactor 24V, 9A

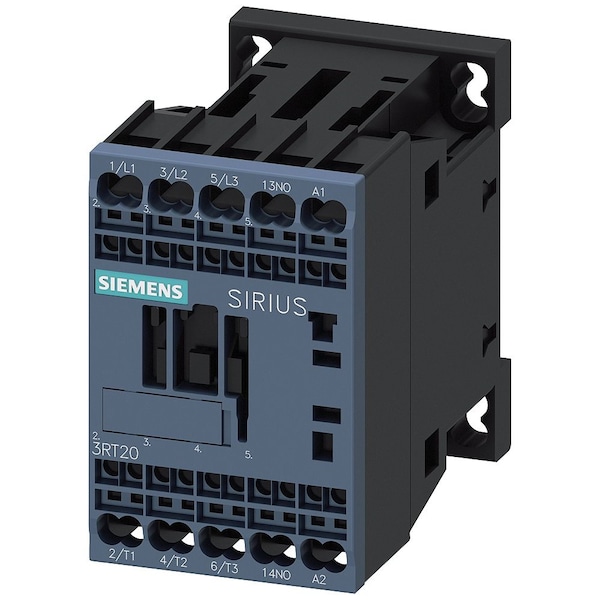

Siemens Contactor 24V, 9A 3RT2016-2AB01 - main

Contactor 24V, 9A

  • Mfr # 3RT2016-2AB01

  • Zoro # G7507810

product price: $96.79
/ea
Free Shipping & Returns

Key Features

Height
70 mm
Width
45 mm
Depth
73 mm
Standards
REACH Art 33, WEEE (2012/19/EU)
HP @ 1 Phase - 240V
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT2016-2AB01
Zoro #
G7507810
UPC #
-
Country of Origin
Germany

Dimensions

Height
70 mm
Width
45 mm
Depth
73 mm
Overall Height
3.08 in
Overall Width
0.55 in
Frame Size
S00
Mounting Hole Distance - Height
2.17 in
Mounting Hole Diameter
0.2 in
Overall Depth
2.92 in
Mounting Hole Distance - Width
1.38 in

Details

Item
IEC Power Contactor
Standards
REACH Art 33, WEEE (2012/19/EU)
HP @ 1 Phase - 240V
1 hp
Hz
50/60
HP @ 3 Phase - 240V
3 hp
HP @ 1 Phase - 120V
1/3 hp
Number of Poles
3
Aux. Contact Configuration
1NO
Full Load Amps-Inductive
9 A
HP @ 3 Phase - 208V
2 hp
Coil Volts
24 V AC
HP @ 3 Phase - 480V
5 hp
Frame / Series / Class / Code
S00
HP @ 3 Phase - 575V
7 1/2 hp
Full Load Amps-Resistive
22 A
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Three Phase - 240V AC
3 hp
Frequency
50/60 Hz
Contactor Style
IEC
Horsepower @ Single Phase - 120V AC
1/3 hp
Horsepower @ Single Phase - 240V AC
1 hp
IP Rating
IP20
Mounting Postion
Vertical
Terminal Connection Type
Spring Loaded Terminals
NEMA Enclosure Rating
No Enclosure
Number of Auxillary Contacts
1
Full Load Current - Inductive
9 A
Includes Auxiliary Contacts
Yes
Coil Voltage
24V AC
Mechanical Operating Durability
30,000,000
Maximum Operating Temperature
140 Degrees F
Series
SIRIUS 3RT20
Horsepower @ Three Phase - 208V AC
2 hp
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Mounting Style
Surface
Full Load Current - Resistive
22 A
Reversing Capability
Non-Reversing
Auxiliary Contact Form
1NO
Number of Normally Open Main Contacts
3
Horsepower @ Three Phase - 480V AC
5 hp
Maximum Voltage Rating
690V AC
Embedded Surge Suppressor
No

Description

IEC Power Contactor, Auxiliary Contact Form 1NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 22 A, Reversing Capability Non-Reversing, Overall Height 3.08 in, Overall Width 0.55 in, Terminal Connection Type Spring Loaded Terminals, Frame Size S00, Mounting Style Surface, Series SIRIUS 3RT20, Number of Auxillary Contacts 1, Contactor Style IEC
