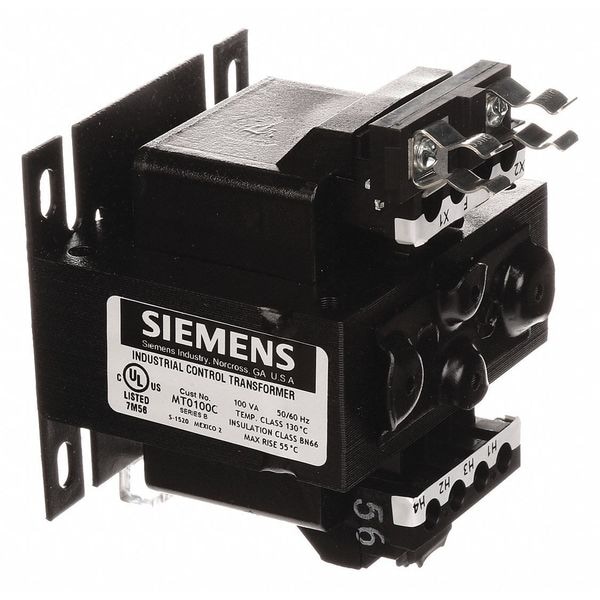

Control Transformer, 100 VA, 24V AC, 120/240V AC
- Mfr # MT0100C
- Zoro # G8527732
product price:Â
$
151.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
120V AC, 240V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
Single
Mounting - Transformer
Foot
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- MT0100C
- Zoro #
- G8527732
- UPC #
- 754554026824
- Country of Origin
- Mexico
- Item
- Control Transformer
- Input Voltage - Transformer
- 120V AC, 240V AC
- Output Voltage
- 24V AC
- Power Rating
- 100 VA
- Phase
- Single
- Mounting - Transformer
- Foot
- Hz - Electrical
- 60 Hz
- Temperature Rise
- 55 Degrees C
- Enclosure Style - Transformer
- Open
- Standards
- CSA, UL Listed
- Protective Device
- Secondary Fuse
- Includes
- Factory Installed Secondary Fuse
- Fused
- No
- Enclosure Finish
- Epoxy Resin Varnish
- Secondary Connection
- Screw-type terminals (touchsafe)
- Primary Connection
- Screw-type terminals (touchsafe)
- Operating Temperature - Minimum
- -4 Degrees F
- For Fuse Class
- CC
- Operating Temperature - Maximum
- 104 Degrees F
- Enclosure Style
- Open
- Frequency
- 50/60 Hz
- Input Voltage
- 120V AC
Dimensions
- Overall Height
- 3.8 in
- Overall Width
- 5.3 in
- Overall Depth
- 4.1 in
- Manufacturers Warranty Length
- 1 yr
Description
Control Transformer, Input Voltage - Transformer 120V AC, 240V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 100 VA, Protective Device Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
