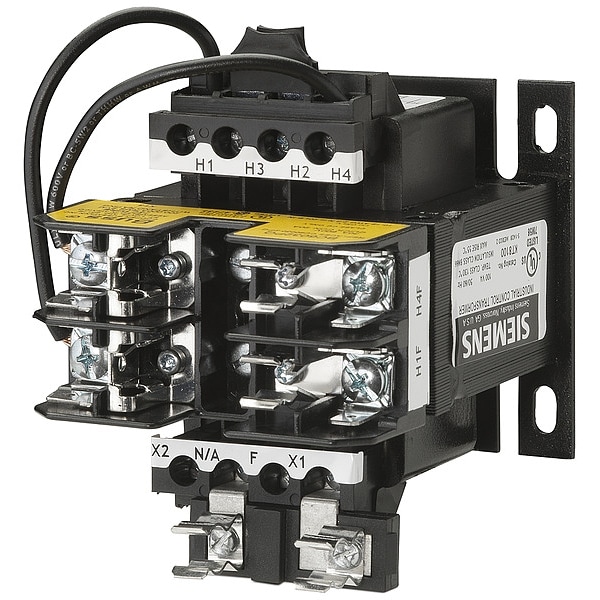

Control Transformer, 100 VA, 24V AC, 240/480V AC
Mfr # MT0100B
Zoro # G6473975
product price: $124.99
/ea
Free Shipping & Returns
Key Features
Input Voltage - Transformer
240/480V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Foot
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
MT0100B
Zoro #
G6473975
UPC #
754554026817
Country of Origin
Mexico
Dimensions
Overall Height
2.88 in
Overall Width
3.38 in
Overall Depth
3.38 in
Manufacturers Warranty Length
1 yr
Details
Item
Control Transformer
Input Voltage - Transformer
240/480V AC
Output Voltage
24V AC
Power Rating
100 VA
Phase
1
Mounting - Transformer
Foot
Hz - Electrical
60 Hz
Includes
Factory Installed Secondary Fuse
Standards
CSA, UL Listed
Enclosure Style - Transformer
Open
Protective Device
Secondary Fuse
Enclosure Finish
Epoxy Resin Varnish
Fused
No
Primary Connection
Screw-type terminals (touchsafe)
Secondary Connection
Screw-type terminals (touchsafe)
Operating Temperature - Minimum
-4 Degrees F
Operating Temperature - Maximum
104 Degrees F
For Fuse Class
CC
Temperature Rise
55°C
Description
Control Transformer, Input Voltage - Transformer 240V AC, 480V AC, Output Voltage - Transformer 24V AC, VA Rating - Transformer 100 VA, Protective Device Secondary Fuse, Enclosure Style - Transformer Open, Mounting - Transformer Foot, Phase - Electrical 1, Hz - Electrical 60 Hz, Temp. Rise 55 Degrees C, Enclosure Finish Epoxy Resin Varnish
