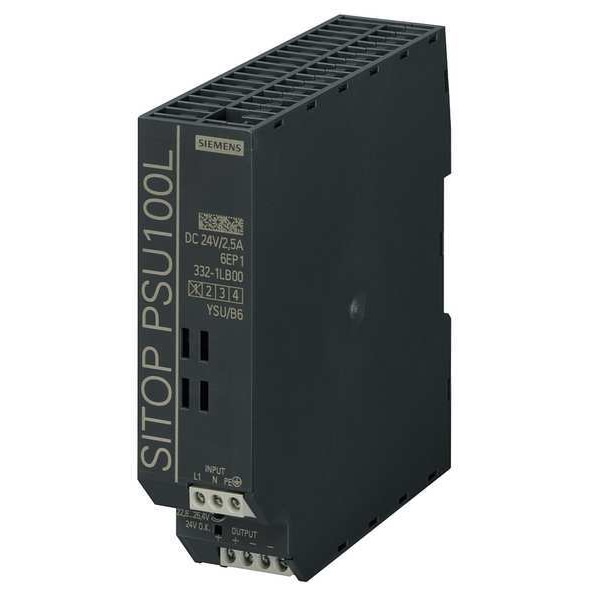

Siemens DC Power Supply, 120/230V AC, 24V DC, 60 W, 2.5 A, DIN Rail 6EP13321LB00 - main

DC Power Supply, 120/230V AC, 24V DC, 60 W, 2.5 A, DIN Rail

  • Mfr # 6EP13321LB00

  • Zoro # G7129211

product price: $111.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6EP13321LB00
Zoro #
G7129211
UPC #
040892917420
Country of Origin
Romania

Dimensions

Overall Height
32 mm
Overall Width
125 mm
Overall Depth
120 mm
Width
32 mm
Height
125 mm
Depth
120 mm

Details

Item
DC Power Supply
Input Voltage
120/230V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
60 W
Current - Output
2.5 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Series
SITOP PSU100L
Output Voltage
24V DC
Standards
CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Output Noise
150/10mV
Status Indicator
Green LED OK Signal
Hold Up Time
Greater Than 20 msec
IP Rating
IP20
Power Rating
60W
Hz
50/60 Hz
Style
Switching
Peak Amps
27
Case Material
Plastic Case
Output Amps
2.5A
Operating Temp. Range
0 to 60°C
Phase - Electrical
Single
Regulated / Unregulated
Regulated
Protection
Short-Circuit Proof
Connection
Screw
Operating Temperature - Minimum
32 Degrees F
Special Features
Short Circuit Protection
Current - Peak
27 A
Wire Connection Type
Screw Terminals
Operating Temperature - Maximum
140 Degrees F
NEMA Enclosure Rating
1
Current - Inrush
27 A

Description

DC Power Supply, Input Voltage 120/230V AC, Output Voltage 24V DC, Power Rating 60W, Output Amps 2.5, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 125 mm, Width 32 mm, Depth 120 mm, Series SITOP PSU100L, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 27, IP Rating IP20, Output Noise 150/10mV, Hold Up Time Greater Than 20 msec, Status Indicator Green LED OK Signal, NEMA Rating 1, Operating Temp. Range 0 Degrees to 60 Degrees C
