Shop SIEMENS

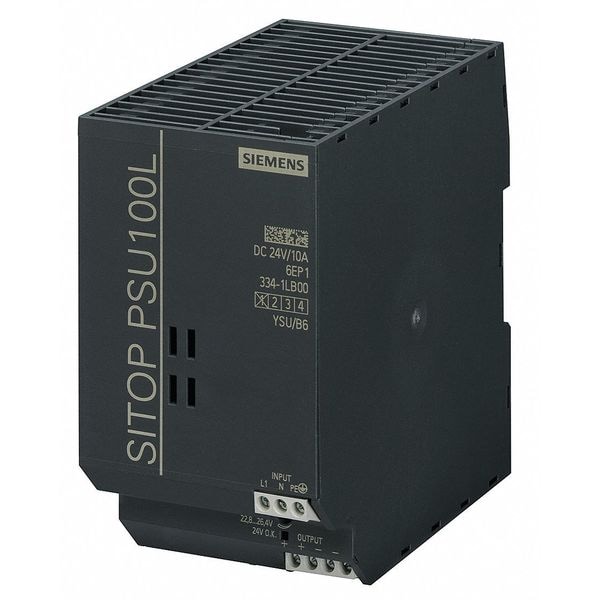

DC Power Supply, 132/264V AC; 93/187V AC, 24V DC, 240 W, 10 A, DIN Rail

  • Mfr # 6EP13341LB00

  • Zoro # G6975945

product price:  $240.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
132/264V AC; 93/187V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
240 W
Current - Output
10 A
Mounting
DIN Rail
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
6EP13341LB00
Zoro #
G6975945
UPC #
040892917437
Country of Origin
Romania

Dimensions

Overall Height
4.92 in
Overall Width
2.76 in
Overall Depth
4.72 in
Depth
120 mm
Width
70 mm
Height
125 mm

Details

Item
DC Power Supply
Input Voltage
132/264V AC; 93/187V AC
Output Voltage - Nominal
24 V DC
Output Power - Rated
240 W
Current - Output
10 A
Mounting
DIN Rail
Housing Material
Plastic
Phase
Single
Power Supply Style
Switching
Style
Switching
IP Rating
IP20
Series
SITOP PSU100L
Hold Up Time
Greater Than 20 msec
Output Voltage
24V DC
Output Amps
10A
Status Indicator
Green LED OK Signal
Power Rating
240W
Hz
50/60 Hz
Phase - Electrical
Single
Standards
BIS, CB-Certificate Yes, CE, CSA, EAC, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Case Material
Plastic Case
Peak Amps
65
Operating Temp. Range
0 to 60°C
Output Noise
150/50mV
Connection
Screw
Regulated / Unregulated
Regulated
Protection
Short-Circuit Proof
Operating Temperature - Maximum
140 Degrees F
Wire Connection Type
Screw Terminals
Operating Temperature - Minimum
32 Degrees F
Current - Inrush
65 A
Special Features
Short Circuit Protection
NEMA Enclosure Rating
1
Current - Peak
65 A
Input Frequency - Minimum
47 Hz
Output Voltage - Minimum
22.8 V DC
Input Frequency - Maximuim
63 Hz
Output Noise - Maximum
150 mV
Hold Up Time - Minimum
20 msec
Output Voltage - Maximum
26.4 V DC

Description

DC Power Supply, Input Voltage 120/230V AC, Output Voltage 24V DC, Power Rating 240W, Output Amps 10, Mounting DIN Rail, Switching, Case Material Plastic Case, Height 125 mm, Width 70 mm, Depth 120 mm, Series SITOP PSU100L, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 65, IP Rating IP20, Output Noise 150/50mV, Hold Up Time Greater Than 20 msec, Status Indicator Green LED OK Signal, NEMA Rating 1, Operating Temp. Range 0 Degrees to 60 Degrees C
