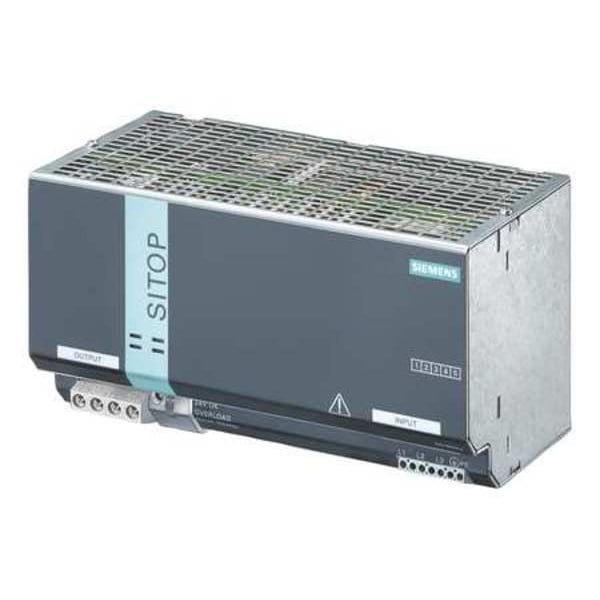

Siemens DC Power Supply, 176/264V AC; 85/132V AC, 24V DC, 960 W, 40 A, DIN Rail 6EP1337-3BA00 - main

DC Power Supply, 176/264V AC; 85/132V AC, 24V DC, 960 W, 40 A, DIN Rail

  • Mfr # 6EP1337-3BA00

  • Zoro # G3931907

product price:  $1,131.99
/ea
Free Shipping & Returns

Key Features

Input Voltage
176/264V AC; 85/132V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
6EP1337-3BA00
Zoro #
G3931907
UPC #
662643299052
Country of Origin
Romania

Dimensions

Overall Height
240 mm
Overall Width
125 mm
Overall Depth
125 mm
Height
125 mm
Depth
125 mm
Width
240 mm

Details

Item
DC Power Supply
Input Voltage
176/264V AC; 85/132V AC
Output Voltage - Nominal
24V DC
Output Power - Rated
960 W
Current - Output
40 A
Mounting
DIN Rail
Housing Material
Metal
Phase
Single
Power Supply Style
Switching
Style
Switching
Phase - Electrical
Single
Peak Amps
120
Standards
CE, CSA, EAC, RCM, REACH Art. 33, RoHS, UL, WEEE (2012/19/EU)
Output Noise
100/60mV
Output Voltage
24V DC
Operating Temp. Range
0 to 70°C
Power Rating
960W
Series
SITOP PSU100M
Case Material
Metal Case
IP Rating
IP20
Output Amps
40A
Hold Up Time
Greater Than 20 msec
Hz
50/60 Hz
Status Indicator
Green LED
Connection
Screw
Protection
Short-Circuit Proof
Regulated / Unregulated
Regulated
Operating Temperature - Maximum
158 Degrees F
Operating Temperature - Minimum
32 Degrees F
Current - Peak
120 A
NEMA Enclosure Rating
1
Special Features
Overvoltage Protection, Short Circuit Protection
Current - Inrush
125 A
Wire Connection Type
Screw Terminals

Description

DC Power Supply, Input Voltage 120 to 230V AC, Output Voltage 24V DC, Power Rating 960W, Output Amps 40, Mounting DIN Rail, Switching, Case Material Metal Case, Height 125 mm, Width 240 mm, Depth 125 mm, Series SITOP PSU100M, Hz 50 to 60 Hz, Phase - Electrical Single, Peak Amps 120, IP Rating IP20, Output Noise 100/60mV, Hold Up Time Greater Than 20 msec, Status Indicator Green LED, NEMA Rating 1, Operating Temp. Range 0 Degrees to 70 Degrees C
