Shop SIEMENS

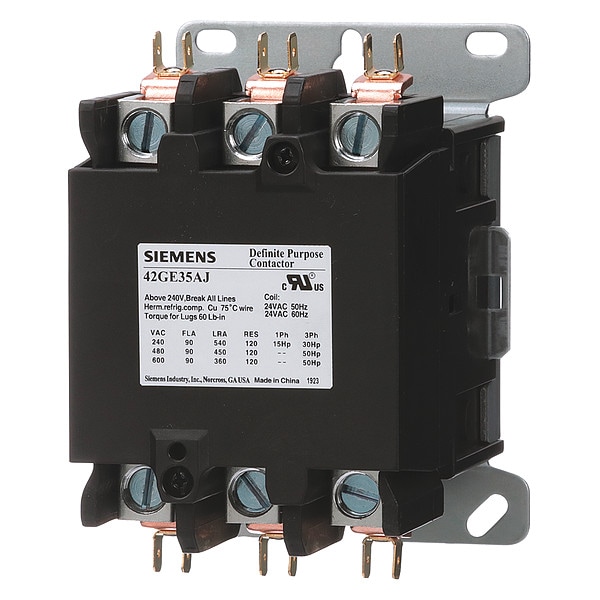

Definite Purpose Magnetic Contactor, 24V AC, 3 P, Non-Reversing, 3 Phase, Screw

  • Mfr # 42GE35AJ

  • Zoro # G8359636

product price:
$
478.99
/ea
Free Shipping & Returns

Key Features

Coil Voltage
24V AC
Series
42GE
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
120 A
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
42GE35AJ
Zoro #
G8359636
UPC #
783087077126
Country of Origin
China

Dimensions

Width
3.5 in
Height
5.02 in
Depth
4.39 in
Mounting Hole Distance - Width
2.87 in
Overall Depth
4.39 in
Mounting Hole Distance - Height
4.63 in
Overall Height
5.02 in
Overall Width
3.5 in

Details

Item
Definite Purpose Magnetic Contactor
Coil Voltage
24V AC
Series
42GE
Number of Poles
3
Reversing Capability
Non-Reversing
Full Load Current - Resistive
120 A
Full Load Current - Inductive
90 A
Phase
3
Terminal Connection Type
Screw
Standards
REACH Art 33
Enclosure NEMA Rating
No Enclosure
Reversing
No
HP @ 3 Phase - 575V
50 hp
Mechanical Operating Durability
250,000
Horsepower @ Three Phase - 480V AC
50 hp
Number of Normally Open Main Contacts
3
Frequency
50/60 Hz
NEMA Enclosure Rating
No Enclosure
Resistance Properties
Weld Resistant
Maximum Voltage Rating
600V AC
Locked Rotor Load
360 A @ 600V, 450 A @ 480V, 540 A @ 240V
Horsepower @ Three Phase - 600V AC
50 hp
Maximum Operating Temperature
158 Degrees F
Auxiliary Contact Module Capacity
2
Horsepower @ Single Phase - 240V AC
15 hp
Mounting Postion
Vertical
Contact Material
Silver Cadmium Oxide
Horsepower @ Single Phase - 120V AC
Not Rated
Mounting Style
Surface
Horsepower @ Three Phase - 240V AC
30 hp
Contactor Style
HVACR Definite Purpose Contactor

Description

Definite Purpose Magnetic Contactor, LED Lighting Current Rating Not Applicable, Coil Voltage 24V AC, Series 42 Series, Number of Poles 3, NEMA Enclosure Rating No Enclosure, Tungsten Lighting Current Rating Not Applicable, Fluorescent Lighting Current Rating Not Applicable, Reversing Capability Non-Reversing, Frame Size Not Applicable, Horsepower @ Single Phase - 240V AC 15 hp, Horsepower @ Single Phase - 120V AC Not Rated, Full Load Current - Resistive 120 A, Full Load Current - Inductive 90 A
