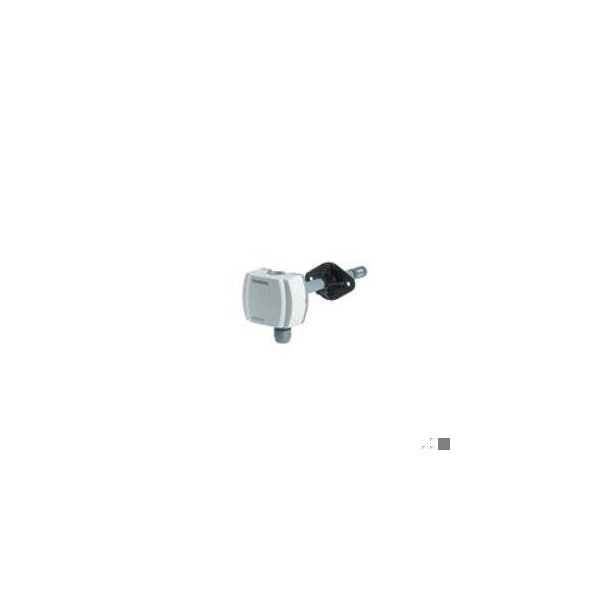

Siemens Duct Humidity Temperature Sensor QFM2160U - main

Duct Humidity Temperature Sensor

  • Mfr # QFM2160U

  • Zoro # G5541687

product price: $199.99
/ea
Free Shipping & Returns

Key Features

Features
This Unit is Especially Suited for Applications Where Precise, Stable Humidity Sensing is Required
Application
Energy Management and Building Control
Overall Length
3 1/8 in
Weight
23.49 oz
Overall Width
2 1/4 in
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
QFM2160U
Zoro #
G5541687
UPC #
-
Country of Origin
China

Dimensions

Overall Length
3 1/8 in
Overall Width
2 1/4 in
Overall Height
3 1/2 in
Manufacturers Warranty Length
5 yr
Probe Diameter
5/8 in
Sensor Cable Length
750 ft
Overall Depth
1 1/2 in
Probe Length
7 in

Details

Item
Humidity and Temperature Sensor
Features
This Unit is Especially Suited for Applications Where Precise, Stable Humidity Sensing is Required
Application
Energy Management and Building Control
Weight
23.49 oz
Relative Humidity Accuracy
+/-3% of Full Scale
Display Units
Degrees C, Degrees F
Display Type
Digital
Relative Humidity Range
30 to 70%
Output
0 to 10V DC, 0 to 5V DC, 4 to 20mA
Series
Q-Series
Humidity Accuracy
+/-5% of Full Scale
IP Rating
IP65
Temperature Accuracy
+/- 1.4 Degrees F: 59 Degrees F to 95 Degrees F/ +/- 1.8 Degrees F: -40 Degrees F to 59 Degrees F and 95 Degrees F to 158 Degrees F
Electrical Connection Type
Screw Terminals
Maximum Operating Temperature
158 Degrees F
NEMA Rating
1
RH Sensor
Capacitive
Minimum Operating Temperature
-40 Degrees F
Housing Material
Polycarbonate
Product Type
Duct Temperature and Humidity Sensor
Housing Type
Open Mounted
Sensing Element Type
Thermistor
Minimum Sensing Temperature
-40 Degrees F
Measurement Type
Single
Relative Humidity/Dew Point Output
0 to 10V DC
Loop Resistance
1
Maximum Sensing Temperature
158 Degrees F

Description

Humidity and Temperature Sensor, Display Type Digital, Sensing Element Type Thermistor, Mounting Location Duct Mount, Output 0 to 10V DC, 0 to 5V DC, 4 to 20mA, Housing Material Polycarbonate, Probe Length 7 in, Temperature Accuracy +/- 1.4 Degrees F: 59 Degrees F to 95 Degrees F/+/- 1.8 Degrees F: -40 Degrees F to 59 Degrees F and 95 Degrees F to 158 Degrees F, Electrical Connection Type Screw Terminals, Maximum Sensing Temperature 158 Degrees F, Minimum Sensing Temperature -40 Degrees F
