  9. Electric Actuator, 160 in.-lb., Modulating
Shop All Actuators and Damper Motors
Siemens

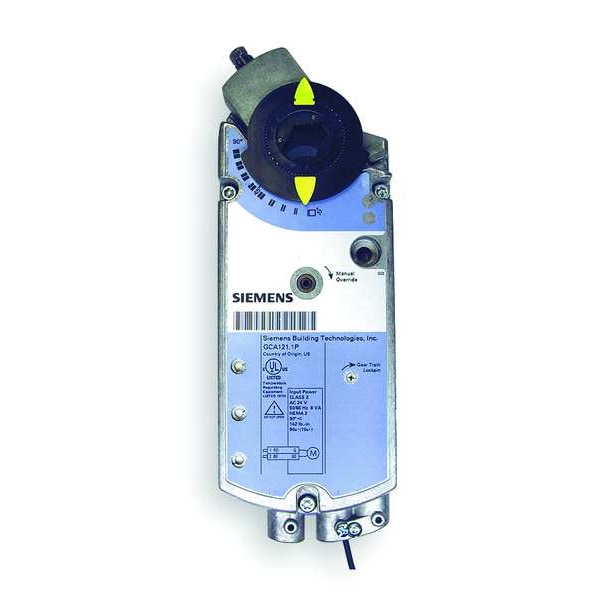

Electric Actuator, 160 in.-lb., Modulating

product price: $347.12
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Spring Return
  • Signal Type Proportional
  • Torque 160 in-lb
  • Voltage 24V AC/DC
See all product information

Product Information

Dimensions

Height 11 13/16 in
Width 3 15/16 in
Depth 2 11/16 in
For Shaft Diameter 1 in
Overall Width 4 3/4 in
For Shaft Width 3/4 in
For Shaft Height 3/4 in
Overall Depth 2 7/8 in
Overall Height 11 3/4 in

Details

Mounting Type Direct Mount
Spring Return Spring Return
Signal Type Proportional
Torque 160 in-lb
Voltage 24V AC/DC
Stroke Deg. 90
Replaces Honeywell Motors Mfr. No. MS7520A2007
Includes Mounting Bracket
Electrical Connections 3 ft 18 AWG Lead
Shaft Type Self-Centering Shaft Coupling
Timing 90 sec
For Use With Valves and Dampers
Item Actuator
Motor Direction CW or CCW
Power Consumption 7 VA
Ambient Temp. Range -25 Degrees to 130 Degrees F
Power Rating 5W
Shaft Rotation CW/CCW
Maximum Operating Temperature 130 Degrees F
Time to Close 15 sec
Plenum Rating Plenum Rated
NEMA Rating 2
For Use With Building Automation Systems Building Automation System Compatible
Housing Material Aluminum
Minimum Operating Temperature -25 Degrees F
For Shaft Shape Round, Square
Stroke Degree 90 Degrees
Rated Torque 160 in-lb
IP Rating IP54
Time to Open 90 sec
Product Type Actuator
Output Signal 0 to 10V DC
Weight 4.85 lb
Number of Auxiliary Switches 0
Valve Application Damper
Input Voltage 24V AC
Standards CE Certified, cUL (C22.2 No. 24-93) Listed, UL 60730
Electrical Connection Type Hardwired
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 160 in-lb, Input Voltage 24V AC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
