  9. Electric Actuator, 20 in.-lb., 120VAC
Shop All Actuators and Damper Motors
Siemens

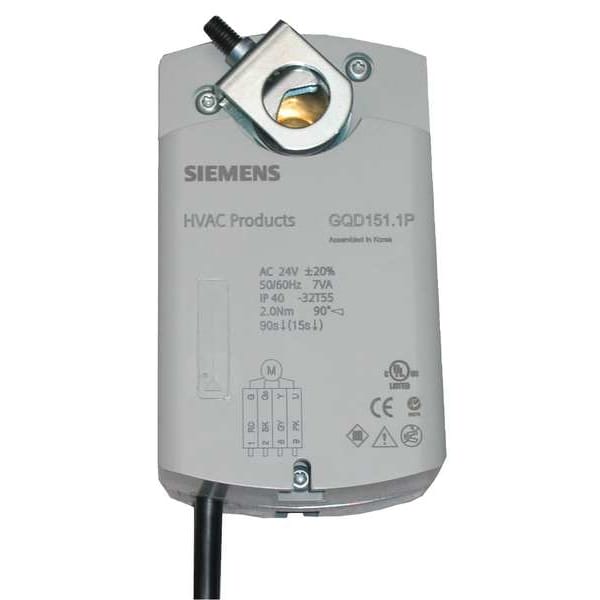

Electric Actuator, 20 in.-lb., 120VAC

product price: $171.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Spring Return
  • Signal Type On/Off
  • Torque 20 in-lb
  • Voltage 120V AC
See all product information

Product Information

Dimensions

Height 5 1/2 in
Depth 2 15/32 in
Width 2 11/16 in
For Shaft Width 1/2 in
Overall Width 2 3/4 in
For Shaft Height 1/2 in
Overall Depth 2 1/2 in
For Shaft Diameter 1/2 in
Overall Height 5 1/2 in

Details

Mounting Type Direct Mount
Spring Return Spring Return
Signal Type On/Off
Torque 20 in-lb
Voltage 120V AC
Power Consumption 10 VA
Motor Direction CW or CCW
Item Actuator
Timing 15 sec Spring Return, 30 sec
Shaft Type Self-Centering Shaft Coupling
For Use With Small HVAC Dampers
Ambient Temp. Range -25 Degrees to 130 Degrees F
Includes Hex Key
Electrical Connections 1/2 in NPT Conduit
Stroke Deg. 90
Replaces Honeywell Motors Mfr. No. MS4103
For Shaft Shape Round, Square
Time to Close 15 sec
Stroke Degree 90 Degrees
Valve Application Damper
Rated Torque 20 in-lb
Electrical Connection Type Hardwired
For Use With Building Automation Systems Building Automation System Compatible
Shaft Rotation CW/CCW
Output Signal 2 to 10V DC
Standards CE Certified, cUL Listed, UL Listed, UL 1995
Application Dampers, Economizers
Maximum Operating Temperature 130 Degrees F
Housing Material Plastic
Time to Open 30 sec
Minimum Operating Temperature -25 Degrees F
IP Rating IP40
Weight 1.06 lb
Plenum Rating Not Plenum Rated
Input Voltage 120V AC
Number of Auxiliary Switches 0
Product Type Actuator
NEMA Rating 1

Description

Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 20 in-lb, Input Voltage 120V AC, Output Signal 2 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP40, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Self-Centering Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
