Shop SIEMENS

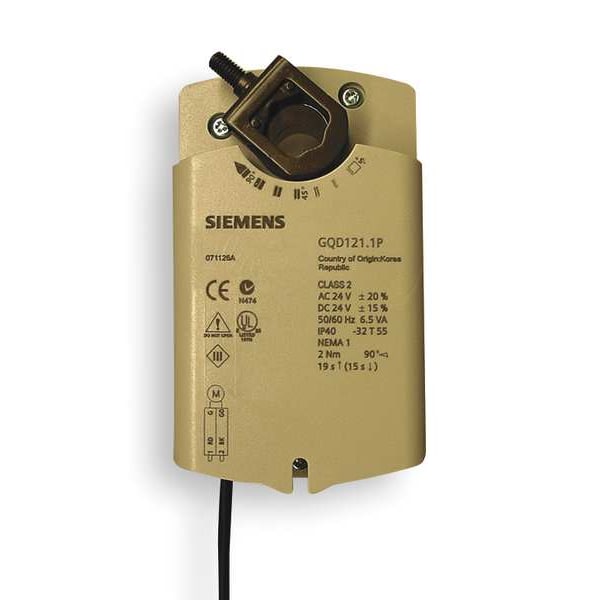

Electric Actuator, 20 in.-lb., 24VAC/DC

  • Mfr # GQD121.1P

  • Zoro # G2408707

product price:
$
149.02
/ea
Free Shipping & Returns

Key Features

Mounting Type
Direct Mount
Spring Return
Spring Return
Signal Type
On/Off
Torque
20 in-lb
Voltage
24V AC/DC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
GQD121.1P
Zoro #
G2408707
UPC #
094705330883
Country of Origin
Korea, Republic of
Mounting Type
Direct Mount
Spring Return
Spring Return
Signal Type
On/Off
Torque
20 in-lb
Voltage
24V AC/DC
Type
Spring-Return
Shaft Type
Set Screw Shaft Coupling
For Use With
Valves and Dampers
Ambient Temp. Range
-25 Degrees to 130 Degrees F
Motor Direction
CW or CCW
Power Consumption
6.5 VA
Item
Actuator
Includes
Hex Key, Mounting Bracket Screws
Replaces Honeywell Motors
Mfr. No. MS8105A1008
Stroke Deg.
90
Electrical Connections
3 ft 18 AWG Lead
Timing
15 sec Spring Return, 30 sec
Minimum Operating Temperature
-25 Degrees F
NEMA Rating
1
Product Type
Actuator
IP Rating
IP40
Input Voltage
24V AC/DC
Stroke Degree
90 Degrees
Time to Close
15 sec
Electrical Connection Type
Hardwired
Housing Material
Plastic
Output Signal
2 to 10V DC
Rated Torque
20 in-lb
Standards
CE Certified, cUL Listed, UL Listed, UL 1995
For Shaft Shape
Round, Square
Valve Application
Damper
Weight
1.06 lb
Maximum Operating Temperature
130 Degrees F
For Use With Building Automation Systems
Building Automation System Compatible
Application
Dampers, Economizers
Plenum Rating
Plenum Rated
Power Rating
4.5W
Shaft Rotation
CW/CCW
Time to Open
90 sec
Number of Auxiliary Switches
0

Description

Actuator, Valve Application Damper, Signal Type On/Off, Rated Torque 20 in-lb, Input Voltage 24V AC/DC, Output Signal 2 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 1, IP Rating IP40, Spring Return Spring Return, Time to Close 15 sec, Shaft Type Set Screw Shaft Coupling, Shaft Rotation CW/CCW, Stroke Degree 90 Degrees , Mounting Type Direct Mount
