  9. Electric Actuator, 88 in.-lb., Modulating
Shop All Actuators and Damper Motors
Siemens

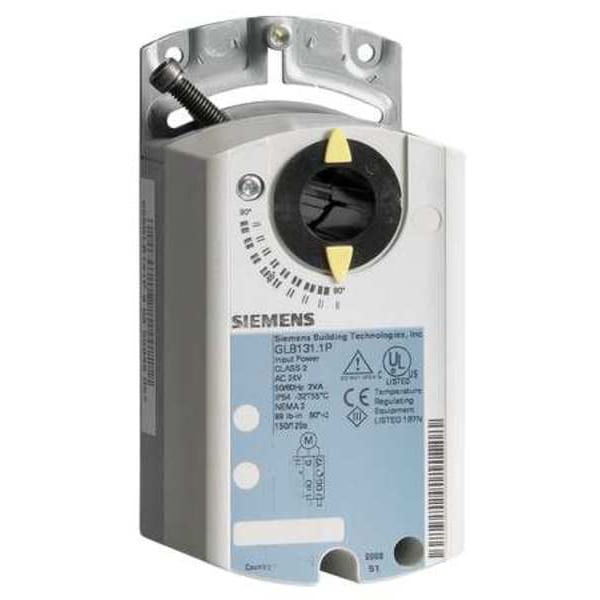

Electric Actuator, 88 in.-lb., Modulating

product price: $177.94
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Mounting Type Direct Mount
  • Spring Return Non-Spring Return
  • Signal Type Proportional
  • Torque 88 in-lb
  • Voltage 24V AC
See all product information

Product Information

Dimensions

Height 5 7/16 in
Depth 2 3/8 in
Width 2 3/4 in
Overall Width 2 3/4 in
For Shaft Diameter 5/8 in
Overall Height 5 1/2 in
Overall Depth 2 3/8 in

Details

Mounting Type Direct Mount
Spring Return Non-Spring Return
Signal Type Proportional
Torque 88 in-lb
Voltage 24V AC
Electrical Connections 3 ft 18 AWG Lead
Includes Mounting Bracket
For Use With Dampers
Power Consumption 3.3 VA
Timing 125 sec
Motor Direction CW or CCW
Stroke Deg. 90
Ambient Temp. Range -25 Degrees to 130 Degrees F
Item Actuator
Replaces Honeywell Motors Mfr. No. MN7510A2001
Shaft Type Self-Centering
Minimum Operating Temperature -22 Degrees F
Input Voltage 24V AC
IP Rating IP54
Time to Close 150 sec
For Shaft Shape Round
Product Type Actuator
Maximum Operating Temperature 130 Degrees F
Shaft Rotation CW/CCW
Housing Material Plastic
Valve Application Damper
For Use With Building Automation Systems Building Automation System Compatible
Time to Open 150 sec
Rated Torque 88 in-lb
Electrical Connection Type Hardwired
Number of Auxiliary Switches 0
Output Signal 0 to 10V DC
Standards C-UL Listed (C22.2 No. 24-93) Listed, CE Certified, UL 1995, UL Listed 873
Plenum Rating Plenum Rated
Stroke Degree 95 Degrees
NEMA Rating 2
Weight 1.06 lb
Application Dampers

Description

Actuator, Valve Application Damper, Signal Type Proportional, Rated Torque 88 in-lb, Input Voltage 24V AC, Output Signal 0 to 10V DC, Contact Form Not Applicable, Electrical Connection Type Hardwired, For Use With Building Automation Systems Building Automation System Compatible, NEMA Rating 2, IP Rating IP54, Spring Return Non-Spring Return, Time to Close 150 sec, Shaft Type Self-Centering, Shaft Rotation CW/CCW, Stroke Degree 95 Degrees , Mounting Type Direct Mount
