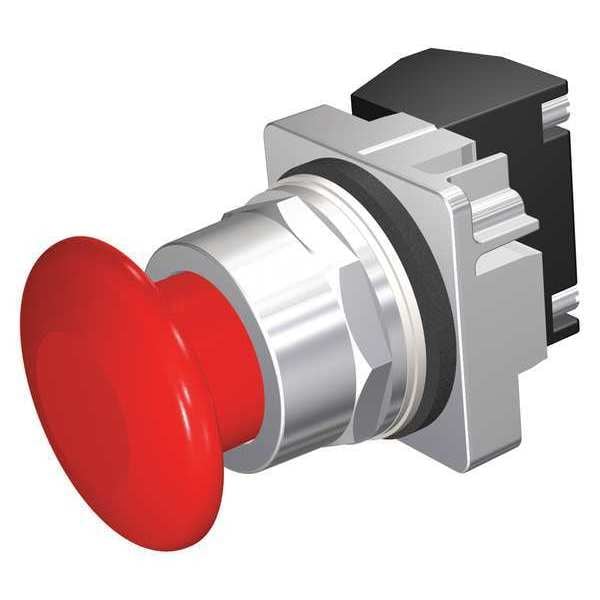

Siemens Emergency Stop Push Button, Size 30mm 52PP2W2AP - main

Emergency Stop Push Button, Size 30mm

  • Mfr # 52PP2W2AP

  • Zoro # G3041932

product price: $174.99
/ea
Free Shipping & Returns

Key Features

Material
Zinc Die Cast
Color
Red
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Action
Maintained
Bezel
Chrome Plated Metal
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
52PP2W2AP
Zoro #
G3041932
UPC #
662643526844
Country of Origin
Mexico

Dimensions

Size
30 mm
Manufacturer Warranty Length
1 yr
Mushroom Head Diameter
44.45 mm
Panel Cutout Diameter
30 mm
Overall Height
4.49 in
Overall Width
2.12 in

Details

Item
Emergency Stop Push Button
Material
Zinc Die Cast
Color
Red
Contact Rating
10A @ 600V AC, 5A @ 600V DC
Action
Maintained
Bezel
Chrome Plated Metal
Standards
CSA, REACH, UL Listed
Number of Operators
1
Head Material
Plastic
Type of Operator
45mm Push-Pull Knob
Legend/Background Color
Black/Yellow
Includes
Legend Plate with Stop Marking
Terminal Connection
Screw
IP Rating
IP20, IP66
NEMA Rating
1, 12, 13, 3, 3R, 4, 4X
Basic Material
Metal
NEMA Contact Rating Designation
A600/P600
Contact Form
1NO/1NC
Features
Bifurcated Movable Contacts, Boots Not Required, NEMA A600/P600 Contacts, Octagonal Mounting Nuts, Positive Indexing Selectors, Positively Driven Contacts, Touchsafe Terminals
Product Type
Emergency Stop Push Buttons
Bezel Material
Chrome
Hazardous Location Specification
Class I, Div 2, Group A, B, C, D
Mechanical Operating Durability
3.00 x 10^5
Maintained Action Release
Push/Pull
DC Contact Rating
5 A @ 600 V
NEMA Enclosure Rating
1, 12, 13, 3, 3R, 4, 4X
Operator Voltage Rating - Maximum
600 V AC
Operating Temperature - Minimum
31 Degrees F
Operating Temperature - Maximum
158 Degrees F
AC Contact Rating
10 A @ 600 V
Operator Material
Metal
Series
Class 52
Resistance Properties
Oil and Grease Resistant, Watertight
Operator Illumination
Non-Illuminated
Push Button Style
Mushroom Head
Number of Indicator Lights
0
Head Color
Red

Description

Emergency Stop Push Button, 30 mm, Maintained Action, 45mm Push-Pull Knob Type of Operator, Head Material Plastic, Contact Form 1NO/1NC, Bezel Chrome Plated Metal, Color Red, Contact Rating 10A @ 600V AC, 5A @ 600V DC, NEMA Contact Rating Designation A600/P600, Number of Operators 1, NEMA Rating 1, 12, 13, 3, 3R, 4, 4X, IP Rating IP20, IP66, Legend Not Applicable, Legend/Background Color Black/Yellow, Standards CSA, REACH, UL Listed, Terminal Connection Screw
