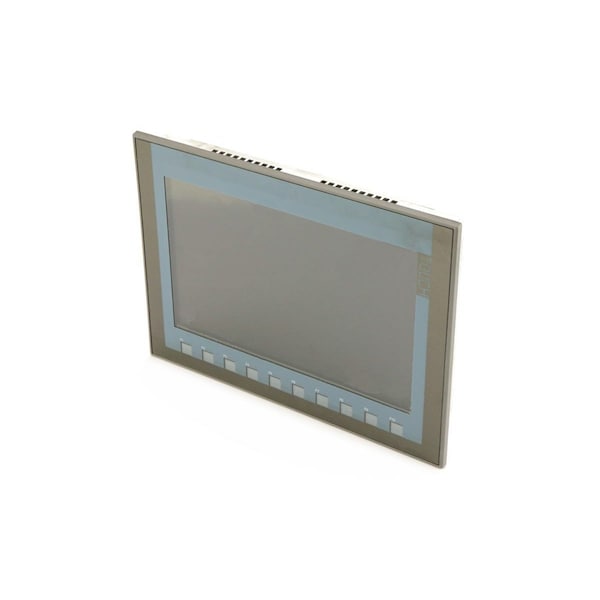

Siemens HMI 6AV2123-2MB03-0AX0 - main

HMI

  • Mfr # 6AV2123-2MB03-0AX0

  • Zoro # G009018768

product price: $3,395.99
/ea
Free Shipping & Returns

Key Features

Number of HW interfaces serial RS232
0
min. supply voltage with DC
19 volt
Width of front
330 millimetre
wall mounting/direct mounting possible
No
Bearing track assembly possible
No
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6AV2123-2MB03-0AX0
Zoro #
G009018768
UPC #
-
Country of Origin
Germany

Dimensions

Width of front
330 millimetre
Height of front
245 millimetre
Installation depth
60 millimetre

Details

Number of HW interfaces serial RS232
0
min. supply voltage with DC
19 volt
wall mounting/direct mounting possible
No
Bearing track assembly possible
No
SW interfaces present
No
number of programmable function keys
10
Number of HW interfaces serial RS485
0
Supply voltage type
DC
Formulations present
Yes
Number of HW interfaces Wireless
0
Manufacturer product family
HMI
Messaging system (including buffer and acknowledgement) present
Yes
description of product type
KTP1200 Basic color PN
Number of HW interfaces, other
0
numeric keyboard present
Yes
max. supply voltage with DC
28.8 volt
Number of HW interfaces serial RS422
0
Number of HW interfaces Industrial Ethernet
1
Min. operating temperature
0 degree_Celsius
number of system buttons
0
Degree of protection (IP), front side
IP65
Touch screen present
Yes
max. number of pixels, horizontal
1280
Number of HW interfaces PROFINET
1
Number of online languages.
10
Max. operating temperature
50 degree_Celsius
IO-link master present
No
Message display present
Yes
Display, color present
Yes
Process value display (output) possible
Yes
Number of HW interfaces serial TTY
0
Alpha keyboard present
Yes
Additional software components, loadable present
No
Number of levels, password protection
50
useable project memory/user memory
10000 kilobyte
Number of colors/shades of gray of the display
65536
Number of HW interfaces parallel
0
Display type
TFT
Pressure output present
No
Monitor diagonal
12 inch
Process value provision (input) possible
Yes
Manufacturer product root
Basic Panel
number of grey scales
0
max. number of pixels, vertical
800
number of buttons with LED
0

Description

SIMATIC , KTP1200 Basic, Basic Panel, Key/touch operation, 12 TFT display, 65536 colors, PROFINET interface, configurable from WinCC Basic V13/ STEP 7 Basic V13, contains open-source software, which is provided free of charge see enclosed CD
