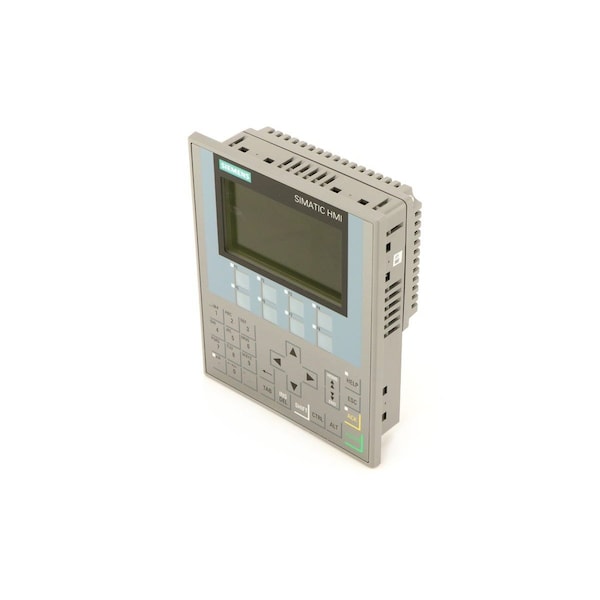

Siemens HMI 6AV2124-1DC01-0AX0 - main

HMI

  • Mfr # 6AV2124-1DC01-0AX0

  • Zoro # G609018779

product price: $1,690.99
/ea
Free Shipping & Returns

Key Features

Manufacturer product family
HMI
Width of front
152 millimetre
Number of HW interfaces parallel
0
Number of HW interfaces Wireless
0
Number of HW interfaces, other
0
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6AV2124-1DC01-0AX0
Zoro #
G609018779
UPC #
-
Country of Origin
Germany

Dimensions

Width of front
152 millimetre
Height of front
188 millimetre
Installation depth
49 millimetre

Details

Manufacturer product family
HMI
Number of HW interfaces parallel
0
Number of HW interfaces Wireless
0
Number of HW interfaces, other
0
Messaging system (including buffer and acknowledgement) present
Yes
Message display present
Yes
Manufacturer product root
Comfort Panel
Pressure output present
Yes
Min. operating temperature
0 degree_Celsius
Number of online languages.
32
number of grey scales
0
Number of HW interfaces Industrial Ethernet
1
max. number of pixels, vertical
272
Supply voltage type
DC
Number of HW interfaces serial RS232
0
Number of colors/shades of gray of the display
16777216
Number of HW interfaces serial RS422
1
Additional software components, loadable present
Yes
Number of HW interfaces serial TTY
0
numeric keyboard present
Yes
max. supply voltage with DC
28.8 volt
wall mounting/direct mounting possible
No
Number of HW interfaces serial RS485
1
Max. operating temperature
50 degree_Celsius
min. supply voltage with DC
19 volt
Degree of protection (IP), front side
IP65
Display, color present
Yes
Touch screen present
No
Process value display (output) possible
Yes
number of buttons with LED
8
Number of levels, password protection
50
SW interfaces present
No
Display type
TFT
Alpha keyboard present
Yes
description of product type
KP400 Comfort
Monitor diagonal
4.3 inch
max. number of pixels, horizontal
480
Bearing track assembly possible
No
Number of HW interfaces PROFINET
1
Formulations present
Yes
useable project memory/user memory
4000 kilobyte
number of system buttons
28
number of programmable function keys
8
IO-link master present
No
Process value provision (input) possible
Yes

Description

SIMATIC KP400 Comfort, Comfort Panel, key operation, 4 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
