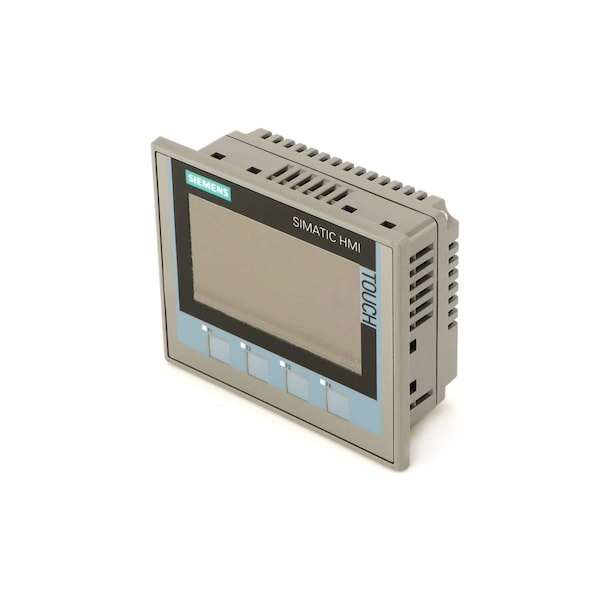

Siemens HMI 6AV2124-2DC01-0AX0 - main

HMI

  • Mfr # 6AV2124-2DC01-0AX0

  • Zoro # G409018856

product price: $1,674.99
/ea
Free Shipping & Returns

Key Features

Touch screen present
Yes
Formulations present
Yes
useable project memory/user memory
4000 kilobyte
Number of HW interfaces serial RS232
0
max. supply voltage with DC
28.8 volt
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6AV2124-2DC01-0AX0
Zoro #
G409018856
UPC #
-
Country of Origin
Germany

Dimensions

Height of front
116 millimetre
Installation depth
49 millimetre
Width of front
140 millimetre

Details

Touch screen present
Yes
Formulations present
Yes
useable project memory/user memory
4000 kilobyte
Number of HW interfaces serial RS232
0
max. supply voltage with DC
28.8 volt
SW interfaces present
No
Message display present
Yes
Display type
TFT
Additional software components, loadable present
Yes
Number of online languages.
32
Process value provision (input) possible
Yes
min. supply voltage with DC
19 volt
number of grey scales
0
Process value display (output) possible
Yes
Pressure output present
Yes
Number of levels, password protection
50
Monitor diagonal
4.3 inch
Min. operating temperature
0 degree_Celsius
description of product type
KTP400 Comfort
number of system buttons
0
Number of HW interfaces serial RS485
1
wall mounting/direct mounting possible
No
Messaging system (including buffer and acknowledgement) present
Yes
max. number of pixels, horizontal
480
Display, color present
Yes
Bearing track assembly possible
No
Number of HW interfaces PROFINET
1
Manufacturer product root
Comfort Panel
number of programmable function keys
4
Alpha keyboard present
Yes
numeric keyboard present
Yes
number of buttons with LED
4
Number of HW interfaces, other
0
Number of HW interfaces parallel
0
Number of HW interfaces serial TTY
0
Max. operating temperature
50 degree_Celsius
Degree of protection (IP), front side
IP65
Number of HW interfaces serial RS422
1
Number of colors/shades of gray of the display
16777216
Number of HW interfaces Industrial Ethernet
1
Supply voltage type
DC
IO-link master present
No
Manufacturer product family
HMI
Number of HW interfaces Wireless
0
max. number of pixels, vertical
272

Description

SIMATIC KTP400 Comfort, Comfort Panel, key/touch operation, 4 widescreen TFT display, 16 million colors, PROFINET interface, MPI/PROFIBUS DP interface, 4 MB configuration memory, Windows CE 6.0, configurable from WinCC Comfort V11
