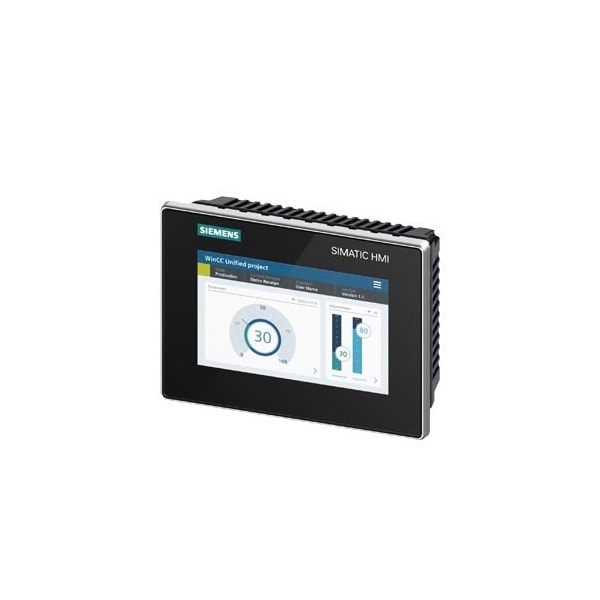

Siemens HMI 6AV2128-3GB06-0AX1 - main

HMI

  • Mfr # 6AV2128-3GB06-0AX1

  • Zoro # G309018796

product price: $2,712.99
/ea
Free Shipping & Returns

Key Features

Number of HW interfaces serial RS422
0
IO-link master present
No
Monitor diagonal
7 inch
Process value display (output) possible
Yes
Max. operating temperature
50 degree_Celsius
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
6AV2128-3GB06-0AX1
Zoro #
G309018796
UPC #
-
Country of Origin
Germany

Dimensions

Width of front
214 millimetre
Height of front
158 millimetre
Installation depth
64 millimetre

Details

Number of HW interfaces serial RS422
0
IO-link master present
No
Monitor diagonal
7 inch
Process value display (output) possible
Yes
Max. operating temperature
50 degree_Celsius
Additional software components, loadable present
Yes
Touch screen present
Yes
Degree of protection (IP), front side
IP65
Messaging system (including buffer and acknowledgement) present
Yes
Number of HW interfaces parallel
0
Display, color present
Yes
Number of HW interfaces, other
0
Pressure output present
Yes
Supply voltage type
DC
Number of HW interfaces serial RS485
1
Number of colors/shades of gray of the display
16777216
Message display present
Yes
Manufacturer product family
HMI
Number of HW interfaces Industrial Ethernet
2
Formulations present
Yes
wall mounting/direct mounting possible
No
Process value provision (input) possible
Yes
numeric keyboard present
Yes
Number of HW interfaces serial TTY
0
Display type
TFT
max. number of pixels, vertical
480
Min. operating temperature
0 degree_Celsius
Number of HW interfaces serial RS232
0
Manufacturer product root
Comfort Panel
Alpha keyboard present
Yes
Bearing track assembly possible
No
max. number of pixels, horizontal
800
Power loss, static, current-independent [Pls]
11 watt
description of product type
MTP700 Unified Comfort
Number of online languages.
32
max. supply voltage with DC
28.8 volt
min. supply voltage with DC
19 volt
Number of HW interfaces Wireless
0

Description

SIMATIC MTP700, Unified Comfort Panel, touch operation, 7 widescreen TFT display, 16 million colors, PROFINET interface, configurable as of WinCC Unified Comfort V16, contains open-source software, which is provided free of charge see enclosed DVD
