  13. IEC ControlRelay, 6NO/2NC, 120VAC, 10Aand6A

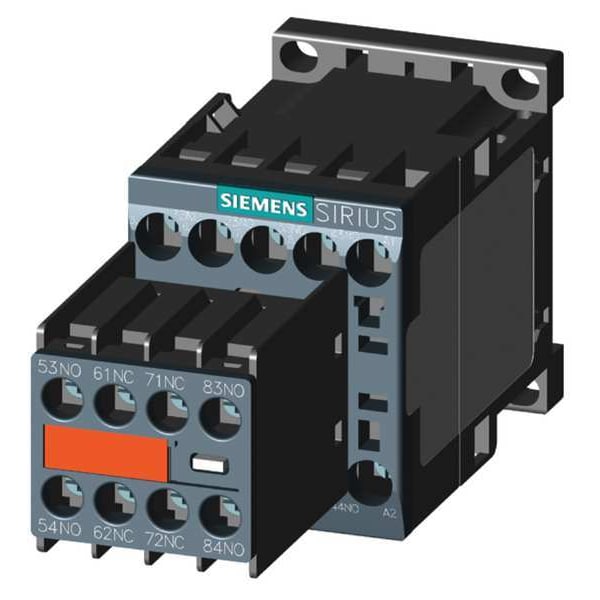

Siemens IEC ControlRelay, 6NO/2NC, 120VAC, 10Aand6A 3RH22621AK60 - main

IEC ControlRelay, 6NO/2NC, 120VAC, 10Aand6A

  • Mfr # 3RH22621AK60

  • Zoro # G6392872

product price: $151.99
/ea
Free Shipping & Returns

Key Features

Item - Relay
IEC Style Control Relay
Coil Volts
120V AC
AC Contact Rating - Relay
10A @ 230V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
18
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RH22621AK60
Zoro #
G6392872
UPC #
040892914153
Country of Origin
Germany

Dimensions

Body Width - Relay
1.77 in
Body Depth - Relay
4.57 in
Body Height - Relay
2.26 in
Overall Height - Relay
2.26 in
Size
0.045 m / 0.0575 m / 0.117 m
Frame Size
S00
Body Width
1.77 in
Body Height
2.26 in
Body Depth
4.57 in
Overall Height
2.26 in

Details

Item - Relay
IEC Style Control Relay
Coil Volts
120V AC
AC Contact Rating - Relay
10A @ 230V
DC Contact Rating - Relay
10A @ 24V
Number of Pins - Relay
18
Contact Form - Relay
(2) SPST-NC, (6) SPST-NO
Mounting - Relay
DIN Rail
Hz - Electrical
50 Hz, 60 Hz
Response Time
10 to 15 msec (Arcing Time), 4 to 15 msec (Opening Delay), 8 to 33 msec (Closing Delay)
Contact Material
Silver Nickel
Item
IEC Control Relay
Hz
50/60
Coil Rating
37VA Inrush, 5.7VA Sealed
Features
Permanently Mounted Auxiliary
Contact Amp Rating (Resistive)
10A and 6A
Power Consumption - Relay
5.7 VA
Contact Form
6NO/2NC
Standards
RoHS Compliant, WEEE (2012/19/EU)
Mounting
Din Rail
Type
Auxiliary contactor
Connection
screw-type terminals
Power Factor
0.8
Contact configuration
2
Operating Temperature
-25°C ... 60°C
Coil voltage
AC
Contact Rating
A600 / Q600
Operating Cycles
10000000
Input Voltage
110/120V AC
Maximum Operating Temperature
140 Degrees F
Mounting Style
DIN Rail and Surface
Frequency
50/60 Hz
Coil Voltage
110/120V AC
Compatible with Series
3RH22 Control Relays
Minimum Operating Temperature
-13 Degrees F
Number of Pins
18
Relay Style
IEC
Contact Rating (DC)
0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V
Current Rating
10 A
Contact Rating (AC)
1 A @ 690V, 2 A @ 500V, 3 A @ 400V, 6 A @ 240V
Power Consumption
5.7 VA
Electrical Connection
Screw Terminal
IP Rating
IP20

Description

IEC Control Relay, Current Rating 10 A, Contact Form 6NO/2NC, Contact Rating (DC) 0.15 A @ 600V, 0.3 A @ 440V, 1 A @ 240V, 10 A @ 24V, 3 A @ 120V, Coil Voltage 110/120V AC, Contact Rating (AC) 1 A @ 690V, 2 A @ 500V, 3 A @ 400V, 6 A @ 240V, Relay Style IEC, Electrical Connection Screw Terminal, Mounting Style DIN Rail and Surface, Power Consumption 5.7 VA, IP Rating IP20, Frame Size S00, NEMA Size Not Applicable, Compatible with Series 3RH22 Control Relays
