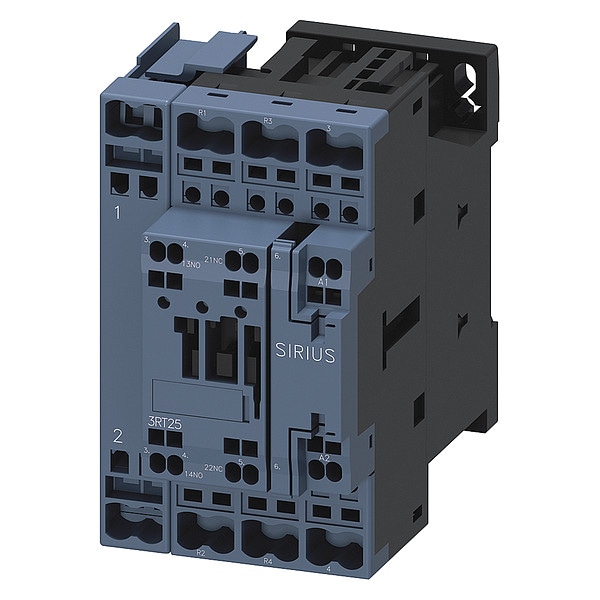

Siemens IEC Magnetic Contactor, 1NC/1NO, 230V AC, 4 P, Non-Reversing, Screw 3RT25262AP00 - main
Shop SIEMENS

IEC Magnetic Contactor, 1NC/1NO, 230V AC, 4 P, Non-Reversing, Screw

  • Mfr # 3RT25262AP00

  • Zoro # G1893458

product price:  $146.99
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
230V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
3RT25262AP00
Zoro #
G1893458
UPC #
662643918335
Country of Origin
Germany

Dimensions

Mounting Hole Diameter
0.19 in
Mounting Hole Distance - Width
1.38 in
Overall Depth
4.41 in
Frame Size
S0
Mounting Hole Distance - Height
2.95 in
Overall Height
5.16 in
Overall Width
3 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
230V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
4
Standards
REACH Art 33, WEEE (2012/19/EU)
Frame / Series / Class / Code
S0
IP Rating
IP20
Series
SIRIUS 3RT25
Max. Operating Watts
26 kW (at 400V, AC-4), 11 kW (at 400V, AC-3), 26 kW (at 400V, AC-1)
Embedded Surge Suppressor
No
Full Load Current - Resistive
40 A
Mounting Style
DIN Rail, Surface
Mounting Postion
Vertical
Minimum Operating Temperature
-13 Degrees F
Horsepower @ Single Phase - 240V AC
3 hp
Horsepower @ Single Phase - 120V AC
2 hp
Mechanical Operating Durability
30,000,000
Number of Normally Open Main Contacts
2
Includes Auxiliary Contacts
Yes
Number of Normally Closed Main Contacts
2
Contactor Style
IEC
Maximum Operating Temperature
140 Degrees F
Frequency
50 Hz
NEMA Enclosure Rating
No Enclosure
Full Load Current - Inductive
25 A

Description

The IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards. This 4-pole, non-reversing model has a coil voltage rating of 230 V AC and conforms to the specifications of the SIRIUS 3RT25 series, frame size S0. It is equipped with auxiliary contacts; contains two normally closed and two normally open main contacts, and supports mounting via DIN Rail or surface mounting methods.

Coil Voltage: 230 V AC

  • Poles: 4
  • Reversing Capability: Non-Reversing
  • Main Contacts: 2 NC / 2 NO
  • Auxiliary Contacts: 4 total (1NO/1NC and 1NC/1NO configurations)
  • Frame Size: S0
  • Mounting Method: DIN Rail or Surface mounting
  • Terminal Connection Type: Screw
  • IP Rating: IP20
  • Frequency: 50 Hz
  • Series: SIRIUS 3RT25
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Embedded Surge Suppressor: No
  • NEMA Enclosure Rating: No Enclosure
  • Max Operating Watts: rated for maximum operating wattages as specified under standard conditions at 400 V in AC-4, AC-1, and AC-3 categories
  • Full Load Amps: Inductive 25 A; Resistive 40 A
  • Mechanical Durability: designed for mechanical durability up to approximately 30 million cycles under normal operating conditions
  • Mounting Hole Diameter: 0.19 in
  • Mounting Hole Distances: Height 2.95 in, Width 1.38 in
  • Overall Dimensions: 4.41 in (Depth) x 5.16 in (Height) x 3.00 in (Width) (112 mm x 131 mm x 76 mm)
  • Includes Auxiliary Contacts: Yes
  • Item: IEC Magnetic Contactor
  • Frame / Series / Class: S0
