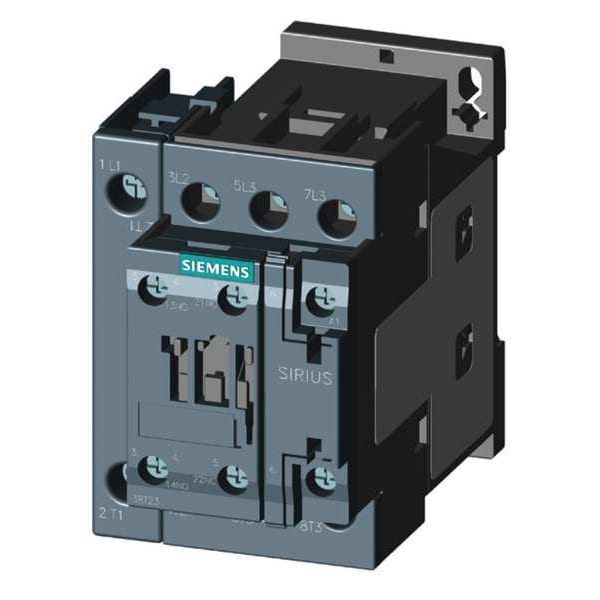

Siemens IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw 3RT23251AC20 - main

IEC Magnetic Contactor, 1NC/1NO, 24V AC, 4 P, Non-Reversing, Screw

  • Mfr # 3RT23251AC20

  • Zoro # G6383176

product price:  $103.32
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT23251AC20
Zoro #
G6383176
UPC #
040892634808
Country of Origin
Germany

Dimensions

Overall Width
3.04 in
Mounting Hole Diameter
0.19 in
Mounting Hole Distance - Width
1.38 in
Frame Size
S0
Overall Depth
3.67 in
Mounting Hole Distance - Height
2.95 in
Overall Height
5.12 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
1NC/1NO
Coil Voltage
24V AC
Number of Poles
4
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
2
Standards
REACH Art 33, WEEE (2012/19/EU)
HP @ 1 Phase - 230V
3
Includes
S0 Frame
HP @ 3 Phase - 575V
15 hp
Enclosure NEMA Rating
No Enclosure
Reversing
No
Frame / Series / Class / Code
S0
Series
SIRIUS 3RT23
Max. Operating Watts
8 kW (at 400V, AC-4), 8 kW (at 400V, AC-3)
Watts Loss
1.9W
IP Rating
IP20
Mechanical Operating Durability
10,000,000
Phase
3
Frequency
50/60 Hz
Full Load Current - Inductive
15.5 A
NEMA Enclosure Rating
No Enclosure
Mounting Style
DIN Rail, Surface
Horsepower @ Single Phase - 120V AC
1 hp
Maximum Operating Temperature
140 Degrees F
Full Load Current - Resistive
30 A
Mounting Postion
Vertical
Embedded Surge Suppressor
No
Horsepower @ Three Phase - 480V AC
10 hp
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
Horsepower @ Three Phase - 240V AC
5 hp
Includes Auxiliary Contacts
Yes
Horsepower @ Three Phase - 600V AC
15 hp
Horsepower @ Three Phase - 208V AC
5 hp
Horsepower @ Single Phase - 240V AC
3 hp
Number of Normally Open Main Contacts
4

Description

The Siemens IEC Magnetic Contactor is an electrically operated switching device rated for operation within the specified IEC standards.

It utilizes a coil rated for 24 V AC; configured as a Non-Reversing, 4-pole device.

  • Coil voltage: 24 V AC
  • Action: Non-Reversing
  • Reversing: No
  • Poles: 4
  • Includes auxiliary contacts (1NO/1NC); compatible with the SIRIUS 3RT23 series S0 frame
  • Auxiliary contacts: 2 (1NO/1NC)
  • Auxiliary contact form: 1NC/1NO
  • Frame/Series/Code: S0; SIRIUS 3RT23
  • Mounting style: DIN Rail, Surface
  • Terminal connection type: Screw
  • Enclosure: No Enclosure
  • IP Rating: conforms to IP20 ingress protection rating
  • Embedded surge suppressor: does not include an embedded surge suppressor
  • Frequency: 50/60 Hz
  • Full Load Amps: Inductive 15.5 A; Resistive 30 A
  • Max operating watts: rated for operation up to 8 kW at specified voltage and load conditions
  • Overall dimensions: 5.12 in H x 3.04 in W x 3.67 in D
  • NEMA Enclosure Rating: No Enclosure
  • Standards: REACH Art 33, WEEE (2012/19/EU)
  • Phase: 3
  • Includes: S0 Frame
