  13. IEC Magnetic Contactor, 2NC/2NO, 12V DC, 4 P, Non-Reversing, Screw

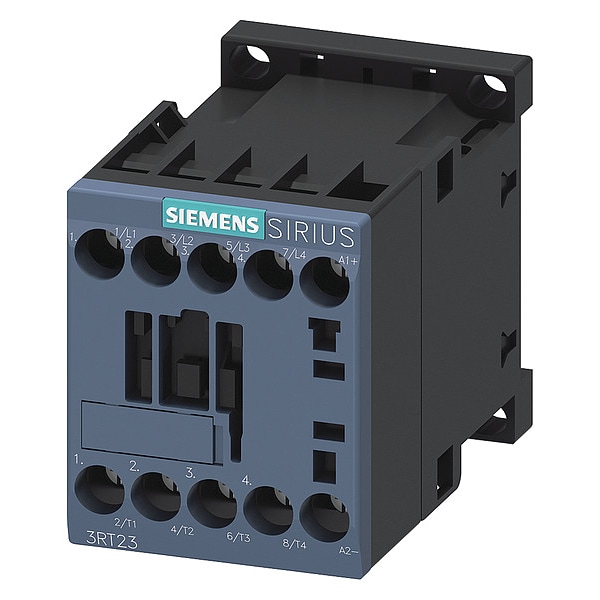

Siemens IEC Magnetic Contactor, 2NC/2NO, 12V DC, 4 P, Non-Reversing, Screw 3RT23171BA40 - main

IEC Magnetic Contactor, 2NC/2NO, 12V DC, 4 P, Non-Reversing, Screw

  • Mfr # 3RT23171BA40

  • Zoro # G1893519

product price: $125.06
/ea
Free Shipping & Returns

Key Features

Auxiliary Contact Form
2NC/2NO
Coil Voltage
12V DC
Number of Poles
4
Full Load Amps-Inductive
22 A
Full Load Amps-Resistive
22 A
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RT23171BA40
Zoro #
G1893519
UPC #
804766190124
Country of Origin
Germany

Dimensions

Height
58 mm
Width
45 mm
Depth
73 mm
Mounting Hole Distance - Height
1.97 in
Frame Size
S00
Overall Depth
2.42 in
Mounting Hole Distance - Width
1.38 in
Mounting Hole Diameter
0.2 in
Overall Width
1.96 in
Overall Height
3.05 in

Details

Item
IEC Magnetic Contactor
Auxiliary Contact Form
2NC/2NO
Coil Voltage
12V DC
Number of Poles
4
Full Load Amps-Inductive
22 A
Full Load Amps-Resistive
22 A
Reversing Capability
Non-Reversing
Terminal Connection Type
Screw
Number of Auxillary Contacts
4
Standards
REACH Art 33, WEEE (2012/19/EU)
Aux. Contact Configuration
2NO/2NC
Coil Volts
12 V DC
Hz
50/60
Frame / Series / Class / Code
S00
Series
SIRIUS 3RT23
Watts Loss
1.6W (Current Dependent); 4W (Current Independent)
Electrical Connection
Screws
IP Rating
IP20
Max. Operating Watts
4 kW (at 400V, AC-4), 6 kW (at 400V, AC-3)
Includes Auxiliary Contacts
Yes
Mounting Style
DIN Rail, Surface
Minimum Operating Temperature
-13 Degrees F
Mounting Postion
Vertical
Full Load Current - Inductive
22 A
Mechanical Operating Durability
10,000,000
Maximum Operating Temperature
140 Degrees F
NEMA Enclosure Rating
No Enclosure
Number of Normally Closed Main Contacts
0
Embedded Surge Suppressor
No
Number of Normally Open Main Contacts
4
Frequency
50/60 Hz
Contactor Style
IEC
Full Load Current - Resistive
22 A

Description

The Siemens IEC Magnetic Contactor is a 4-pole, non-reversing, IEC-style device rated for operation within specified parameters with a 12 V DC coil. It features four auxiliary contacts (2 normally open and 2 normally closed) and uses screw terminals for connections. This unit belongs to the SIRIUS 3RT23 family (frame size S00) and supports mounting on a DIN rail or surface, oriented vertically, in control panels.

Coil voltage: 12 V DC

  • Poles: 4
  • Reversing: Non-Reversing
  • Auxiliary contacts: 4 (2NO/2NC)
  • Main contacts: 4 NO, 0 NC
  • Frame/Series: SIRIUS 3RT23, Frame Size S00
  • Mounting: DIN Rail or Surface; Mounting position: Vertical
  • Electrical connection: Screws
  • Embedded surge suppressor: No
  • IP rating: IP20
  • Frequency: 50/60 Hz
  • Full load amps: Inductive 22 A; Resistive 22 A
  • Power rating: 4 kW at 400 V AC-4; 6 kW at 400 V AC-3
  • Dimensions: Dimensions are provided for informational purposes only; actual performance may vary based on installation conditions.
  • Overall dimensions: Overall dimensions are provided for informational purposes only; actual performance may vary based on installation conditions.
  • Mounting hole diameter: Mounting hole diameter specifications are provided for reference only.
  • Mounting hole distance: Height 1.97 in; Width 1.38 in
  • Includes auxiliary contacts: Yes
