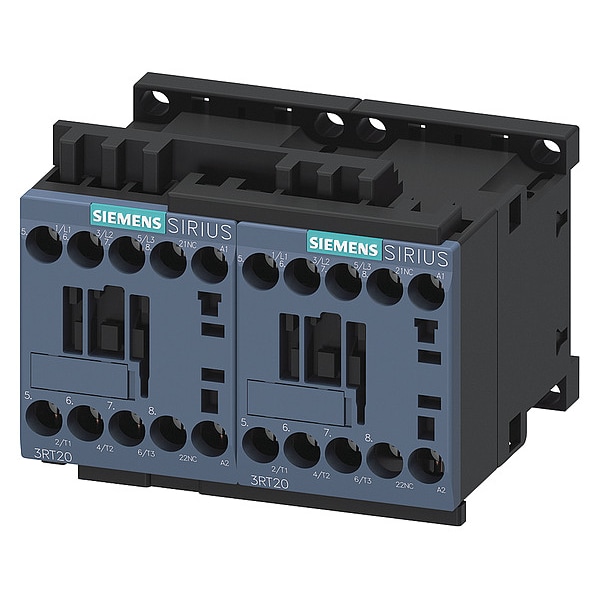

Siemens IEC Power Contactor, Reversing, 24VAC 3RA23168XB301AB0 - main

IEC Power Contactor, Reversing, 24VAC

  • Mfr # 3RA23168XB301AB0

  • Zoro # G8360038

product price: $236.99
/ea
Free Shipping & Returns

Key Features

Full Load Amps-Inductive
9 A
Full Load Amps-Resistive
18 A
Number of Poles
3
Coil Volts
24 V AC
Reversing
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
3RA23168XB301AB0
Zoro #
G8360038
UPC #
662643897913
Country of Origin
Germany

Dimensions

Height
68 mm
Width
90 mm
Depth
73 mm
Overall Depth
3.75 in
Overall Height
3.25 in
Frame Size
S00
Overall Width
3.05 in

Details

Full Load Amps-Inductive
9 A
Item
IEC Power Contactor
Full Load Amps-Resistive
18 A
Number of Poles
3
Coil Volts
24 V AC
Reversing
Yes
HP @ 1 Phase - 120V
1/3 hp
HP @ 1 Phase - 240V
1 hp
HP @ 3 Phase - 208V
2 hp
HP @ 3 Phase - 240V
3 hp
HP @ 3 Phase - 575V
7 1/2 hp
HP @ 3 Phase - 480V
5 hp
Hz
50/60
Frame / Series / Class / Code
S00
Auxiliary Contact Form
3NO
Series
SIRIUS 3RA23
Aux. Contact Configuration
3NO
Standards
REACH Art 33, WEEE (2012/19/EU)
Horsepower @ Three Phase - 600V AC
7 1/2 hp
Frequency
50/60 Hz
Mounting Style
DIN Rail, Surface
Horsepower @ Three Phase - 480V AC
5 hp
Maximum Operating Temperature
140 Degrees F
Number of Normally Open Main Contacts
3
Includes Auxiliary Contacts
Yes
Reversing Capability
Reversing
Embedded Surge Suppressor
No
Coil Voltage
24V AC
Horsepower @ Three Phase - 208V AC
2 hp
Phase
Three
Number of Normally Closed Main Contacts
0
Minimum Operating Temperature
-13 Degrees F
Contactor Style
IEC
NEMA Enclosure Rating
No Enclosure
IP Rating
IP20
Maximum Voltage Rating
690V AC
Full Load Current - Resistive
18 A
Mounting Postion
Vertical
Horsepower @ Single Phase - 240V AC
1 hp
Number of Auxillary Contacts
3
Horsepower @ Single Phase - 120V AC
1/3 hp
Mechanical Operating Durability
10,000,000
Horsepower @ Three Phase - 240V AC
3 hp
Full Load Current - Inductive
9 A
Terminal Connection Type
Screw Terminals

Description

IEC Power Contactor, Auxiliary Contact Form 3NO, NEMA Enclosure Rating No Enclosure, NEMA Size Not Applicable, Coil Voltage 24V AC, Number of Poles 3, Full Load Current - Inductive 9 A, Full Load Current - Resistive 18 A, Reversing Capability Reversing, Overall Height 3.25 in, Overall Width 3.05 in, Terminal Connection Type Screw Terminals, Frame Size S00, Mounting Style DIN Rail, Surface, Series SIRIUS 3RA23, Number of Auxillary Contacts 3, Contactor Style IEC
